SKU: 6304NRC3-NSK

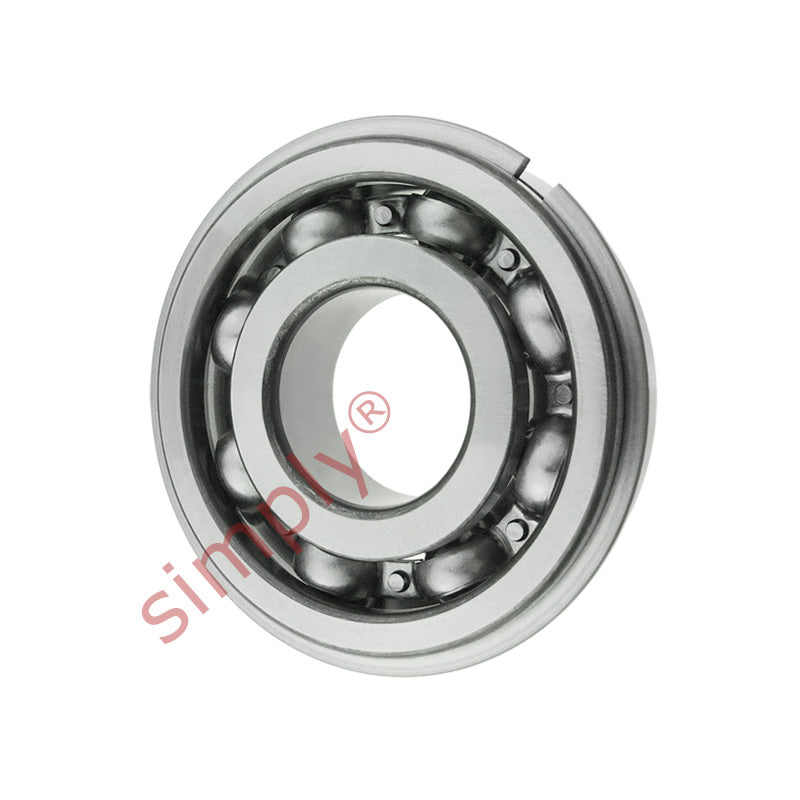

NSK 6304NRC3 Open Type Deep Groove Ball Bearing With Snap Ring 20x52x15mm
NSK 6304NRC3 Open Type Deep Groove Ball Bearing With Snap Ring 20x52x15mm
Regular price
Rs. 2,286.42
Regular price
Sale price
Rs. 2,286.42
Taxes included.
In stock
Price Break
10+
Rs. 2,034.91
19+
Rs. 1,920.59
29+
Rs. 1,897.73
39+
Rs. 1,874.86
49+
Rs. 1,852.00
74+
Rs. 1,829.14
99+
Rs. 1,714.82
199+
Rs. 1,691.95
249+
Rs. 1,669.09
499+
Rs. 1,646.22
999+
Rs. 1,600.49
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1.1mm |
| Dynamic load Cr | 15900 N (1620 kgf) |
| Static load Cor | 7900 N (805 kgf) |
| Factor | 12.4 |
| Speed in grease | 14000 rpm |
| Speed in oil | 17000 rpm |
| a max | 2.46mm |
| b min | 1.35mm |
| D1 max | 49.73mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 57.9mm |
| f max | 1.12mm |
| da2 min | 26.5mm |
| da2max | 28mm |
| Da2max | 45.5mm |
| ra max | 1mm |
| Dx min | 58.5mm |
| Cy max | 3.3mm |
| Weight | 0.145 kg |
