SKU: 6303-NTN

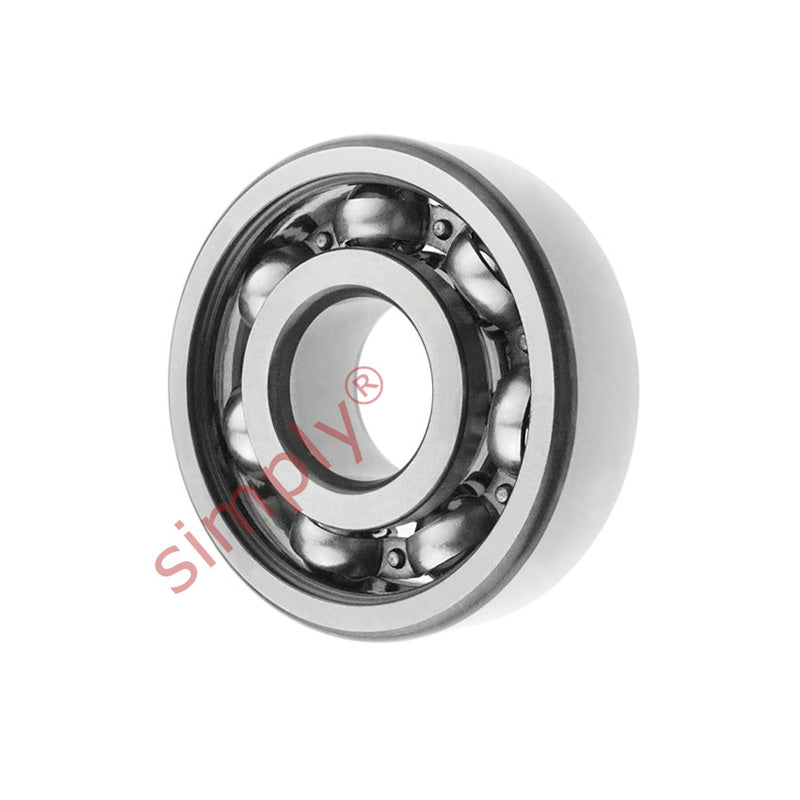

NTN 6303 Open Type Deep Groove Ball Bearing 17x47x14mm
NTN 6303 Open Type Deep Groove Ball Bearing 17x47x14mm
Regular price
Rs. 880.77
Regular price
Sale price
Rs. 880.77
Taxes included.
Equivalent to: 6303CM 303K 1303 303KS 6303 3303 4B
In stock
Price Break
10+
Rs. 783.89
19+
Rs. 739.85
29+
Rs. 731.04
39+
Rs. 722.23
49+
Rs. 713.42
74+
Rs. 704.62
99+
Rs. 660.58
199+
Rs. 651.77
249+
Rs. 642.96
499+
Rs. 634.15
999+
Rs. 616.54
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6303CM 303K 1303 303KS 6303 3303 4B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 47mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15 kN |
| C<sub>or</sub> | 6.55 kN |
| C<sub>u</sub> | 0.51 kN |
| f<sub>0</sub> | 12.2 kN |
| Grease | 16000 rpm |
| Oil | 19000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 22mm |
| D<sub>a</sub> Max. | 42mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.115 kg |
