SKU: 6303-HT-330

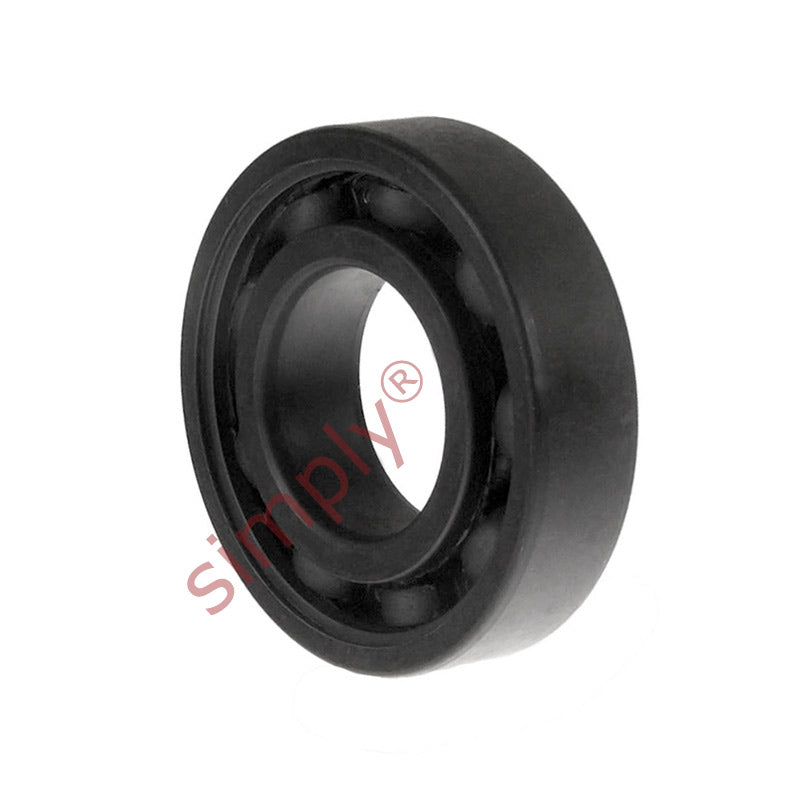

6303HT330 High Temp 330C Open Deep Groove Ball Bearing 17x47x14mm Max 175rpm
6303HT330 High Temp 330C Open Deep Groove Ball Bearing 17x47x14mm Max 175rpm
Regular price
Rs. 1,577.19
Regular price
Sale price
Rs. 1,577.19
Taxes included.
Equivalent to: 6303VA201 6303VA208 6303VA228
In stock
Price Break
10+
Rs. 1,403.70
19+
Rs. 1,324.84
29+
Rs. 1,309.07
39+
Rs. 1,293.30
49+
Rs. 1,277.52
74+
Rs. 1,261.75
99+
Rs. 1,182.89
199+
Rs. 1,167.12
249+
Rs. 1,151.35
499+
Rs. 1,135.58
999+
Rs. 1,104.03
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6303VA201 6303VA208 6303VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 17mm |
|---|---|
| Outside diameter D | 47mm |
| Width W | 14mm |
| Static load max | 3.79 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 175 rpm |
| Weight | 120 g |
