SKU: 6301-NTN

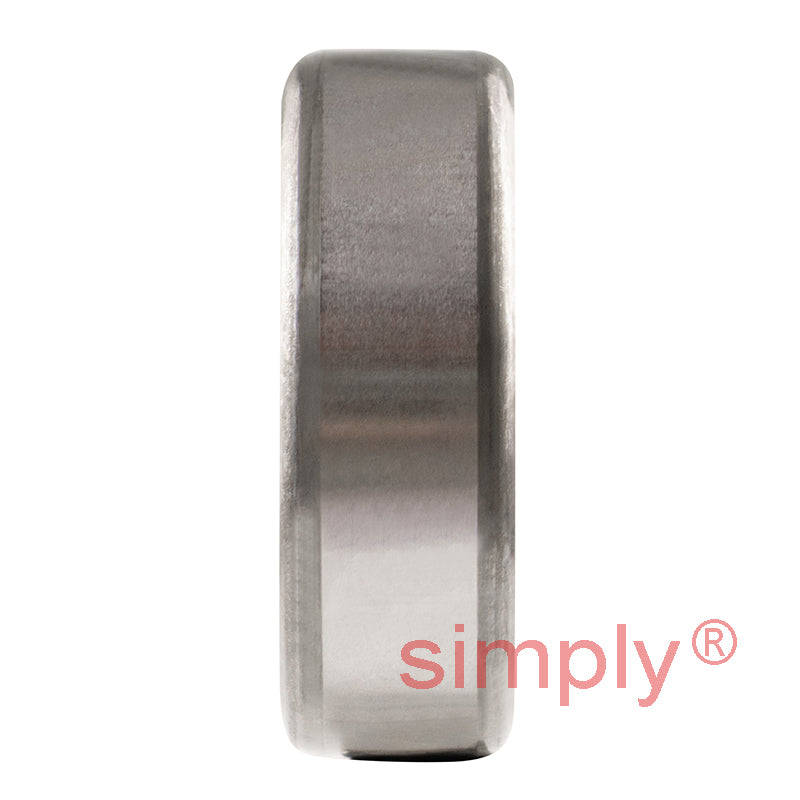

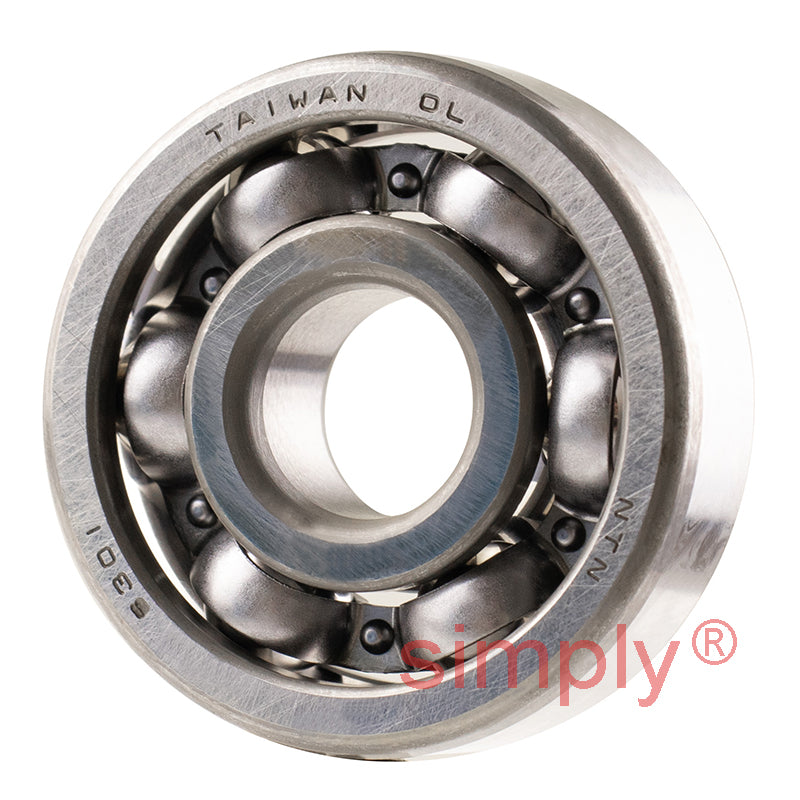

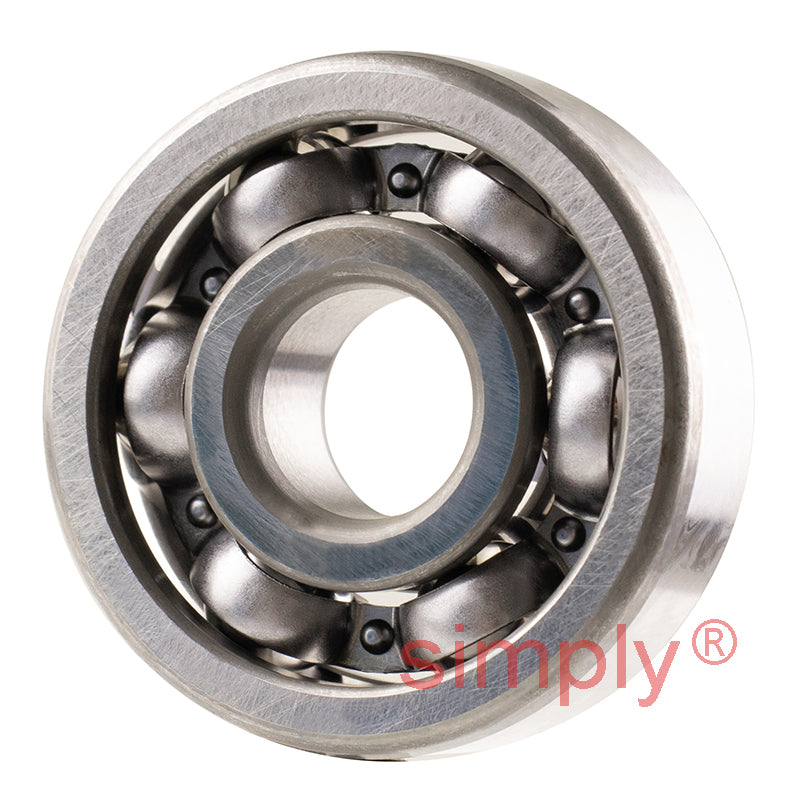

NTN 6301 Open Type Deep Groove Ball Bearing 12x37x12mm
NTN 6301 Open Type Deep Groove Ball Bearing 12x37x12mm
Regular price
Rs. 780.91
Regular price
Sale price
Rs. 780.91
Taxes included.
Equivalent to: 6301CM 301K 1301 301KS 6301 3301 2B
In stock
Price Break
10+
Rs. 695.01
19+
Rs. 655.96
29+
Rs. 648.16
39+
Rs. 640.35
49+
Rs. 632.54
74+
Rs. 624.73
99+
Rs. 585.68
199+
Rs. 577.87
249+
Rs. 570.06
499+
Rs. 562.26
999+
Rs. 546.64
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6301CM 301K 1301 301KS 6301 3301 2B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 37mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 12mm |
| D | 37mm |
| B | 12mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.8 kN |
| C<sub>or</sub> | 4.2 kN |
| C<sub>u</sub> | 0.325 kN |
| f<sub>0</sub> | 11.1 kN |
| Grease | 20000 rpm |
| Oil | 24000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 17mm |
| D<sub>a</sub> Max. | 32mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.06 kg |
