SKU: 6240-2Z-EU

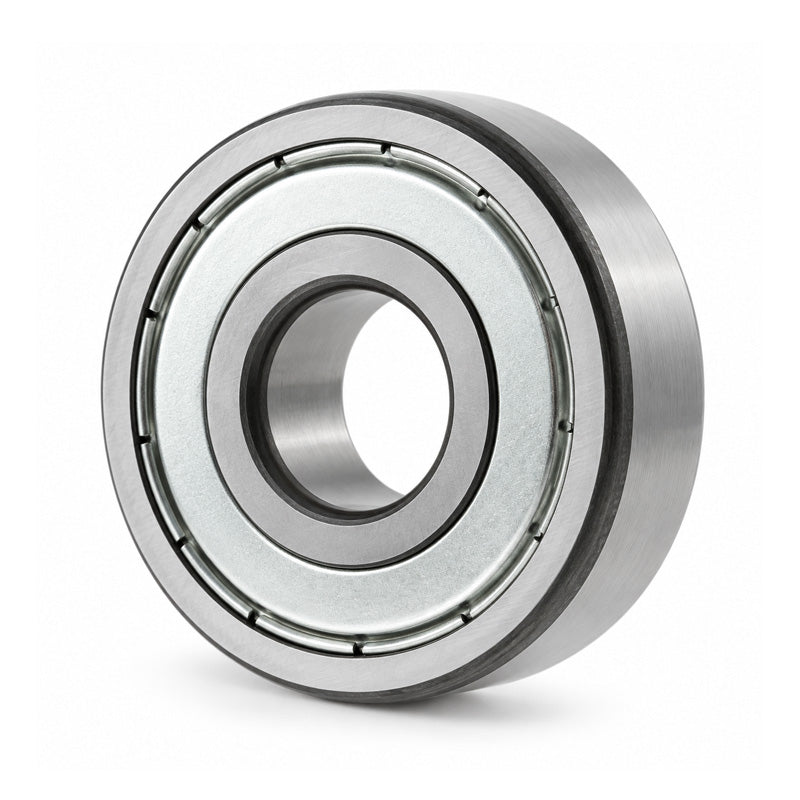

6240ZZ Budget Metal Shielded Deep Groove Ball Bearing 200x360x58mm
Equivalent to: 6240ZZE 6240ZZ 6240.2Z 6240KDD 6240DD 6240FF 62402ZR 6240ZZE 6240ZZ 62402ZR 62402RS2
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6240ZZE 6240ZZ 6240.2Z 6240KDD 6240DD 6240FF 62402ZR 6240ZZE 6240ZZ 62402ZR 62402RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 360mm
- Width:
- 58mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 200mm |
|---|---|
| D | 360mm |
| B | 58mm |
| r min | 4mm |
| Dynamic load Cr | 269 kN |
| Static load Cor | 311 kN |
| Speed in grease | 1600 rpm |
| Speed in oil | 1900 rpm |
