SKU: 6226-ZZ-NACHI

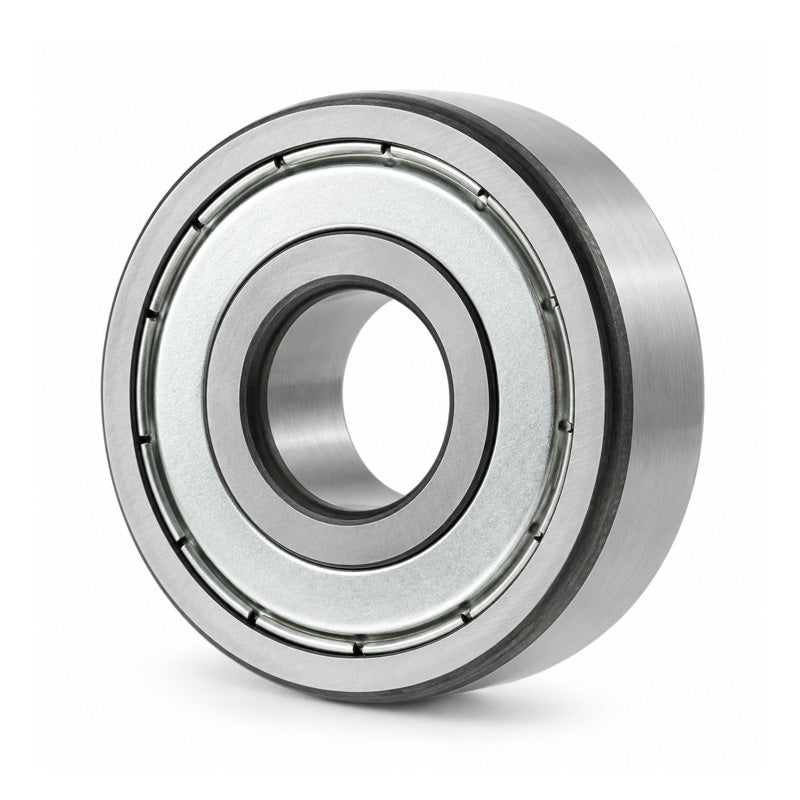

NACHI 6226ZZ Metal Shielded Deep Groove Ball Bearing 130x230x40mm
NACHI 6226ZZ Metal Shielded Deep Groove Ball Bearing 130x230x40mm
Regular price
Rs. 58,147.50
ex VAT
Regular price
Sale price
Rs. 58,147.50
ex VAT
Equivalent to: 6226ZZE 62262Z 6226.2Z 6226KDD 6226DD 62262ZR 6226FF
In stock
Price Break
10+
Rs. 51,751.28
19+
Rs. 48,843.90
29+
Rs. 48,262.43
39+
Rs. 47,680.95
49+
Rs. 47,099.48
74+
Rs. 46,518.00
99+
Rs. 43,610.63
199+
Rs. 43,029.15
249+
Rs. 42,447.68
499+
Rs. 41,866.20
999+
Rs. 40,703.25
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6226ZZE 62262Z 6226.2Z 6226KDD 6226DD 62262ZR 6226FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 130mm |
|---|---|
| Outside Diameter D | 230mm |
| Width B | 40mm |
| Min radius r | 3mm |
| Dynamic load | 167000 kN |
| Static load | 146000 kN |
| Max speed | 2700 rpm |
| da min | 144mm |
| Da max | 216mm |
| ra max | 2.5mm |
| Weight | 5.82 kg |
