SKU: 6226-NTN

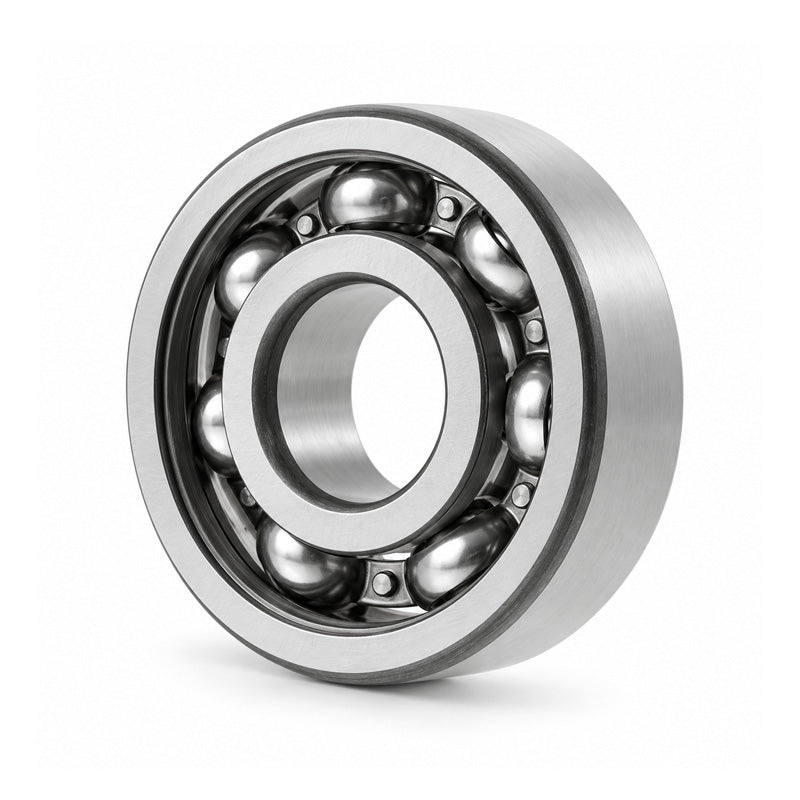

NTN 6226 Open Type Deep Groove Ball Bearing 130x230x40mm
NTN 6226 Open Type Deep Groove Ball Bearing 130x230x40mm
Regular price
Rs. 45,221.35
Regular price
Sale price
Rs. 45,221.35
Taxes included.
Equivalent to: 6226CM 226K 1226 226S 6226 3226 21A 130BC02
In stock
Price Break
10+
Rs. 40,247.00
19+
Rs. 37,985.93
29+
Rs. 37,533.72
39+
Rs. 37,081.51
49+
Rs. 36,629.29
74+
Rs. 36,177.08
99+
Rs. 33,916.01
199+
Rs. 33,463.80
249+
Rs. 33,011.59
499+
Rs. 32,559.37
999+
Rs. 31,654.95
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6226CM 226K 1226 226S 6226 3226 21A 130BC02
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 130mm |
| D | 230mm |
| B | 40mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 185 kN |
| C<sub>or</sub> | 146 kN |
| C<sub>u</sub> | 8.55 kN |
| f<sub>0</sub> | 14.5 kN |
| Grease | 2700 rpm |
| Oil | 3100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 143mm |
| D<sub>a</sub> Max. | 217mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 5.82 kg |
