SKU: 6224-NTN

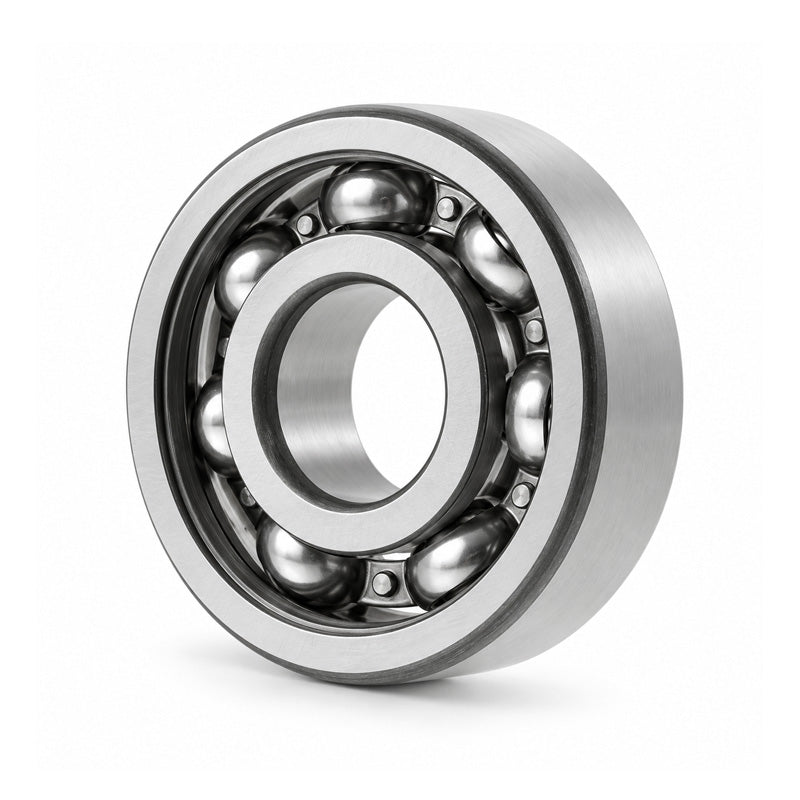

NTN 6224 Open Type Deep Groove Ball Bearing 120x215x40mm
NTN 6224 Open Type Deep Groove Ball Bearing 120x215x40mm
Regular price
Rs. 38,532.37
Regular price
Sale price
Rs. 38,532.37
Taxes included.
Equivalent to: 6224CM 224K 1224 224S 6224 3224 20A 120BC02
In stock
Price Break
10+
Rs. 34,293.81
19+
Rs. 32,367.19
29+
Rs. 31,981.87
39+
Rs. 31,596.54
49+
Rs. 31,211.22
74+
Rs. 30,825.90
99+
Rs. 28,899.28
199+
Rs. 28,513.95
249+
Rs. 28,128.63
499+
Rs. 27,743.31
999+
Rs. 26,972.66
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6224CM 224K 1224 224S 6224 3224 20A 120BC02
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 120mm |
| D | 215mm |
| B | 40mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 172 kN |
| C<sub>or</sub> | 131 kN |
| C<sub>u</sub> | 7.95 kN |
| f<sub>0</sub> | 14.4 kN |
| Grease | 2900 rpm |
| Oil | 3400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 131mm |
| D<sub>a</sub> Max. | 204mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 5.15 kg |
