SKU: 6224-2Z-EU

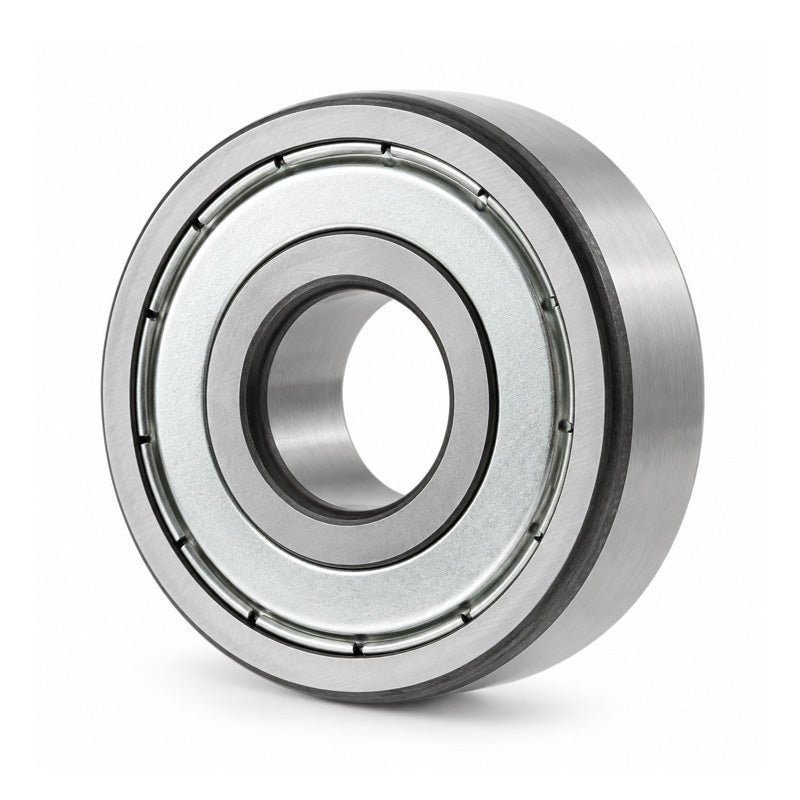

6224ZZ Budget Metal Shielded Deep Groove Ball Bearing 120x215x40mm
Equivalent to: 6224ZZE 6224ZZ 6224.2Z 6224KDD 6224DD 6224FF 62242ZR 6224ZZE 6224ZZ 62242ZR 62242RS2
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6224ZZE 6224ZZ 6224.2Z 6224KDD 6224DD 6224FF 62242ZR 6224ZZE 6224ZZ 62242ZR 62242RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| r min | 2.1mm |
| Dynamic load Cr | 155 kN |
| Static load Cor | 131 kN |
| Speed in grease | 2900 rpm |
| Speed in oil | 3400 rpm |
