SKU: 6222-NTN

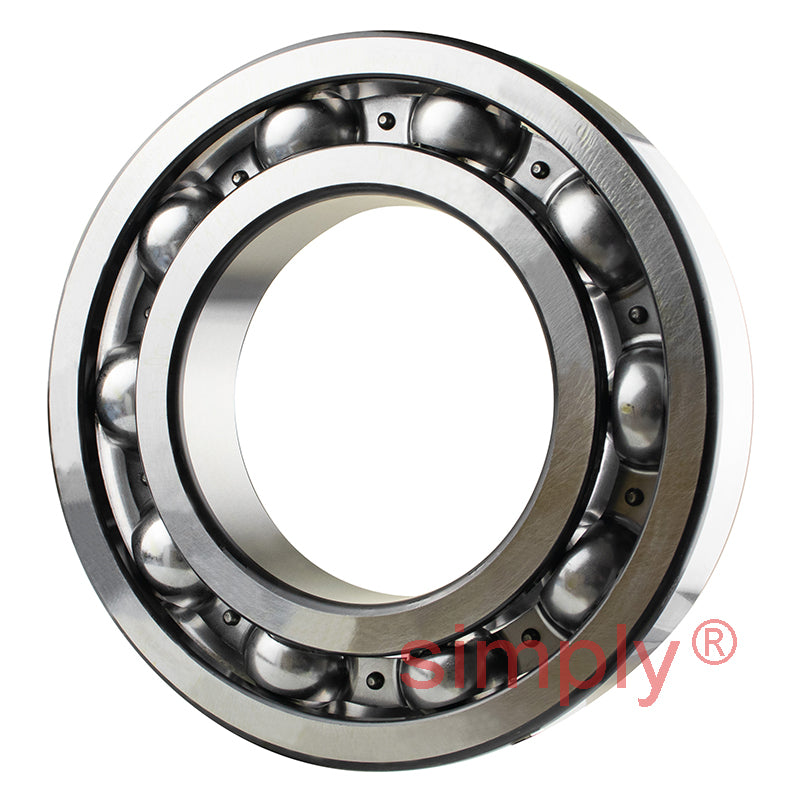

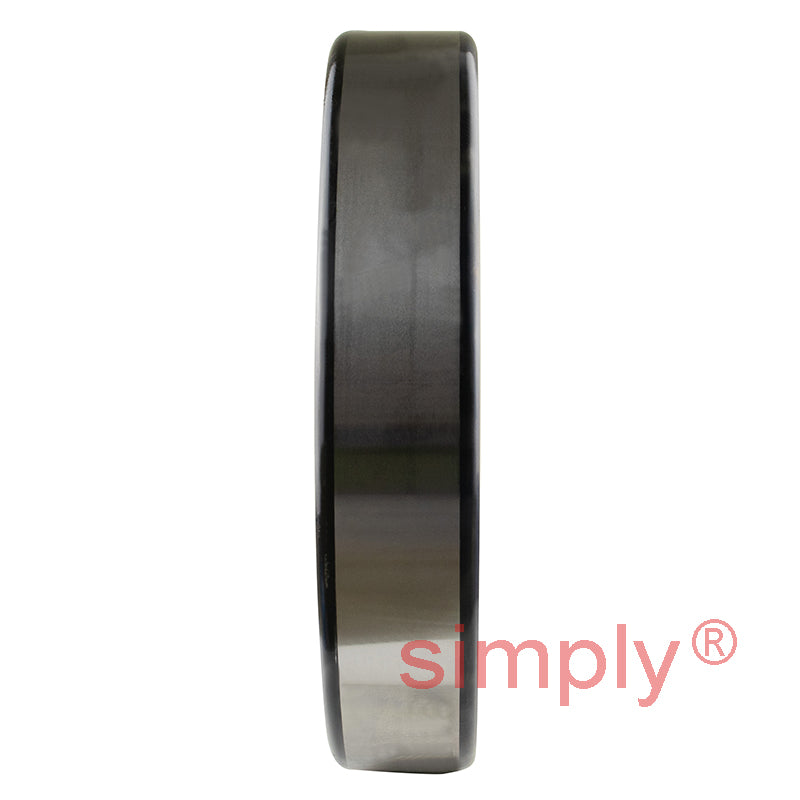

NTN 6222 Open Type Deep Groove Ball Bearing 110x200x38mm
NTN 6222 Open Type Deep Groove Ball Bearing 110x200x38mm
Regular price
Rs. 32,605.10
Regular price
Sale price
Rs. 32,605.10
Taxes included.
Equivalent to: 6222CM 222K 1222 222S 6222 3222 19A 110BC02
In stock
Price Break
10+
Rs. 29,018.54
19+
Rs. 27,388.28
29+
Rs. 27,062.23
39+
Rs. 26,736.18
49+
Rs. 26,410.13
74+
Rs. 26,084.08
99+
Rs. 24,453.83
199+
Rs. 24,127.77
249+
Rs. 23,801.72
499+
Rs. 23,475.67
999+
Rs. 22,823.57
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6222CM 222K 1222 222S 6222 3222 19A 110BC02
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 200mm |
| B | 38mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 160 kN |
| C<sub>or</sub> | 117 kN |
| C<sub>u</sub> | 7.35 kN |
| f<sub>0</sub> | 14.3 kN |
| Grease | 3200 rpm |
| Oil | 3800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 121mm |
| D<sub>a</sub> Max. | 189mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 4.36 kg |
