SKU: 6222-2Z-EU

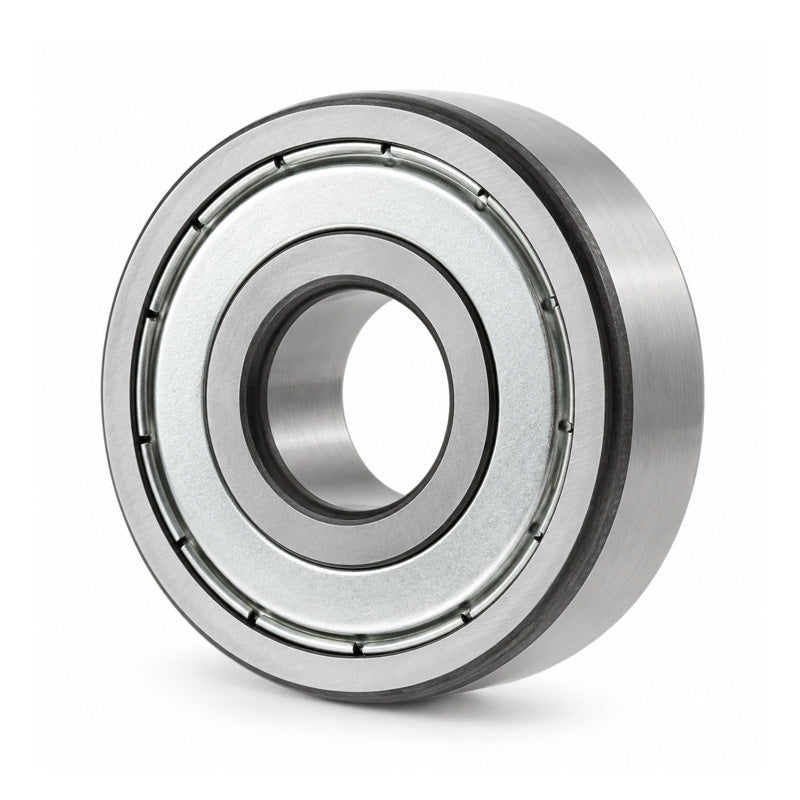

6222ZZ Budget Metal Shielded Deep Groove Ball Bearing 110x200x38mm
Equivalent to: 6222ZZE 6222ZZ 6222.2Z 6222KDD 6222DD 6222FF 62222ZR 6222ZZE 6222ZZ 62222ZR 62222RS2
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6222ZZE 6222ZZ 6222.2Z 6222KDD 6222DD 6222FF 62222ZR 6222ZZE 6222ZZ 62222ZR 62222RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 110mm |
|---|---|
| D | 200mm |
| B | 38mm |
| r min | 2.1mm |
| Dynamic load Cr | 144 kN |
| Static load Cor | 117 kN |
| Speed in grease | 3100 rpm |
| Speed in oil | 3700 rpm |
