SKU: 6220NR-NTN

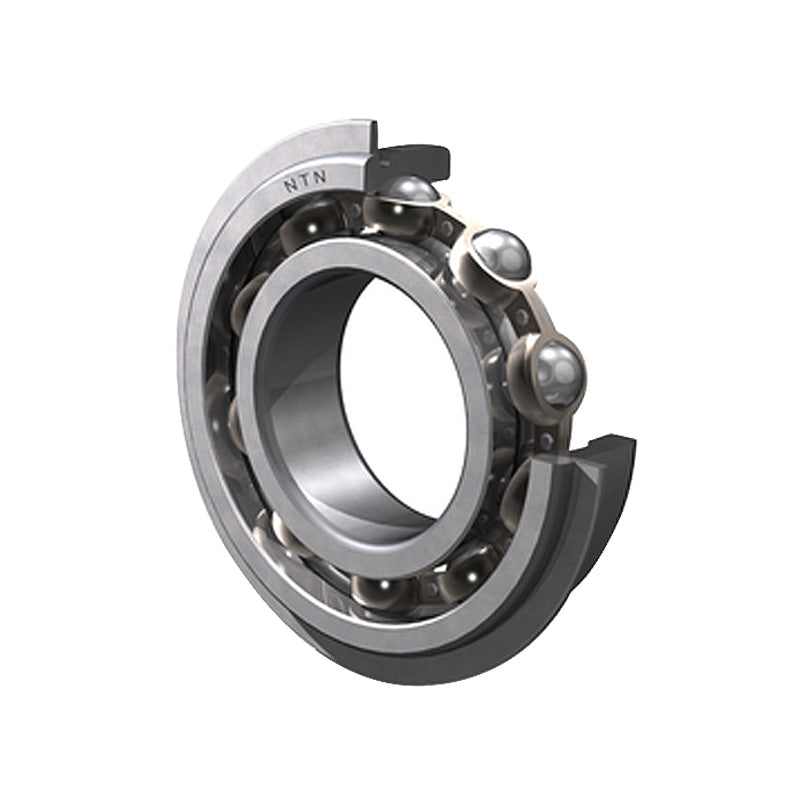

NTN 6220NR Open Type Deep Groove Ball Bearing with Snap Ring 100x180x34mm
NTN 6220NR Open Type Deep Groove Ball Bearing with Snap Ring 100x180x34mm
Regular price
Rs. 16,099.64
Regular price
Sale price
Rs. 16,099.64
Taxes included.
Equivalent to: 6220NRCM 220KG 220SG 43220
In stock
Price Break
10+
Rs. 14,328.68
19+
Rs. 13,523.70
29+
Rs. 13,362.70
39+
Rs. 13,201.70
49+
Rs. 13,040.71
74+
Rs. 12,879.71
99+
Rs. 12,074.73
199+
Rs. 11,913.73
249+
Rs. 11,752.74
499+
Rs. 11,591.74
999+
Rs. 11,269.75
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6220NRCM 220KG 220SG 43220
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 180mm |
| B | 34mm |
| r<sub>s</sub> min | 2.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 135 kN |
| C<sub>or</sub> | 93 kN |
| C<sub>u</sub> | 6.15 kN |
| f<sub>0</sub> | 14.4 kN |
| Grease | 3500 rpm |
| Oil | 4200 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 173.66mm |
| a Max. | 5.69mm |
| b Min. | 3.5mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 192.9mm |
| f Max. | 3.1mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 111mm |
| d<sub>a</sub> Max. | 122mm |
| D<sub>a</sub> Max. | 169mm |
| D<sub>X</sub> (approx) | 195mm |
| C<sub>Y</sub> Max. | 8.4mm |
| C<sub>Z</sub> Min. | 3.1mm |
| r<sub>as</sub> Max. | 2mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 3.14 kg |
