SKU: 6220-2Z-EU

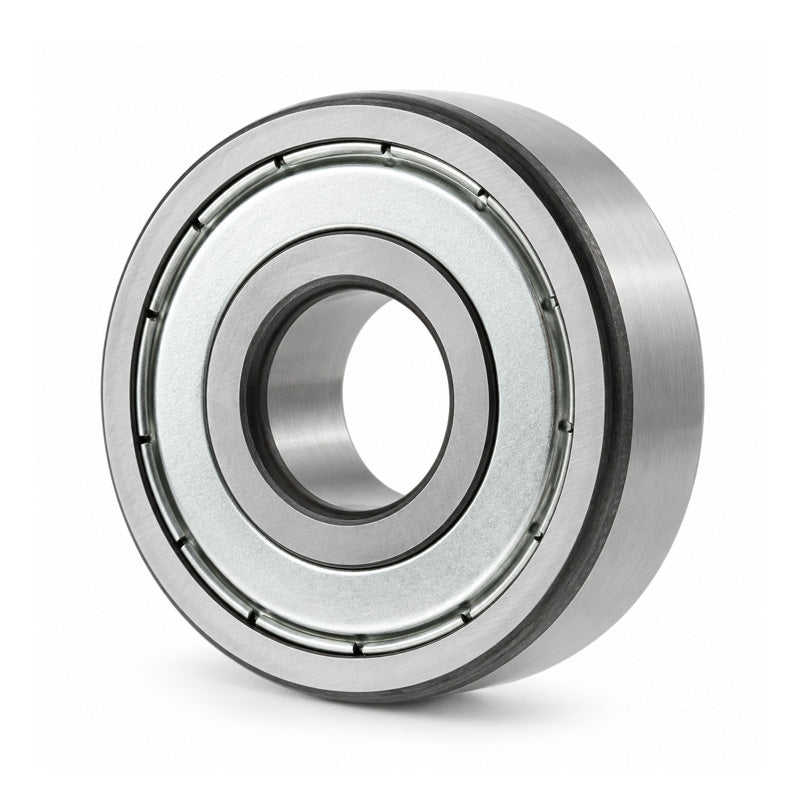

6220ZZ Budget Metal Shielded Deep Groove Ball Bearing 100x180x34mm
Equivalent to: 62202KD 62202D 62202F 62202ZE 62202ZR 6220ZZE 6220ZZ 62202ZR 62202RS2
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 62202KD 62202D 62202F 62202ZE 62202ZR 6220ZZE 6220ZZ 62202ZR 62202RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 34mm |
| r min | 2.1mm |
| Dynamic load Cr | 122 kN |
| Static load Cor | 93.1 kN |
| Speed in grease | 3500 rpm |
| Speed in oil | 4200 rpm |
