SKU: 6214LLBC3/5K-NTN

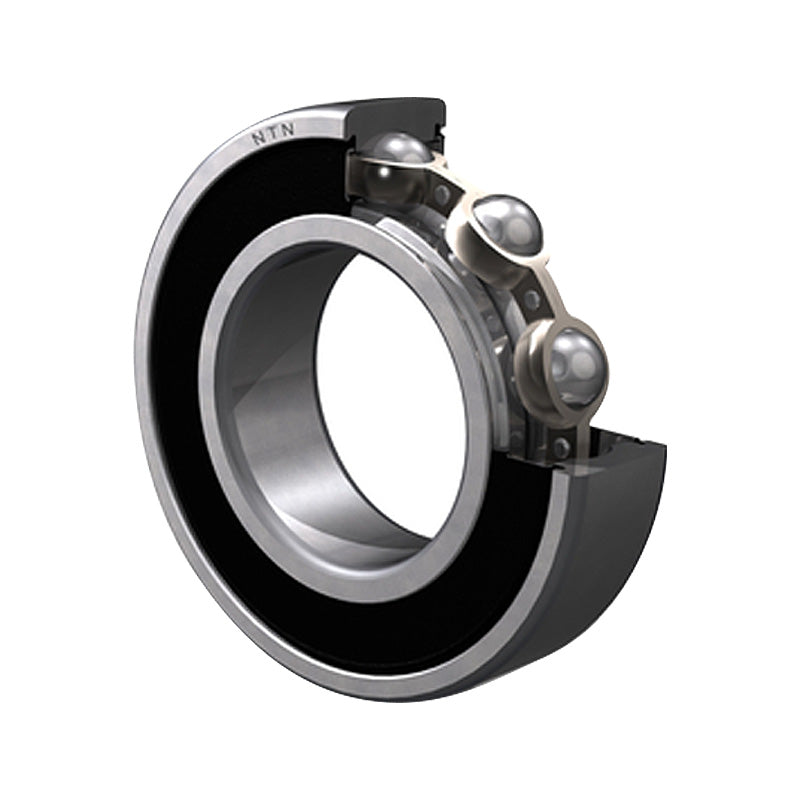

NTN 6214LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 70x125x24mm - Allow 2-3 Days
NTN 6214LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 70x125x24mm - Allow 2-3 Days
Regular price
Rs. 7,092.24
Regular price
Sale price
Rs. 7,092.24
Taxes included.
Equivalent to: 62142NKEC3 6214VVC3 62142RSLC3 62142RZC3
In stock
Price Break
5+
Rs. 7,021.32
10+
Rs. 6,737.63
20+
Rs. 6,595.78
50+
Rs. 6,383.02
100+
Rs. 6,241.17
500+
Rs. 5,886.56
1000+
Rs. 4,964.57
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 62142NKEC3 6214VVC3 62142RSLC3 62142RZC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 24mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 70mm |
| D | 125mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 69 kN |
| C<sub>or</sub> | 44 kN |
| C<sub>u</sub> | 3.45 kN |
| f<sub>0</sub> | 14.5 kN |
| Grease | 5100 rpm |
| Oil | 6000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 78mm |
| d<sub>a</sub> Max. | 85mm |
| D<sub>a</sub> Max. | 117mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 1.07 kg |
