SKU: 6214-CDX
Codex 6214 Open Deep Groove Ball Bearing 70x125x24mm
Codex 6214 Open Deep Groove Ball Bearing 70x125x24mm
Regular price
Rs. 4,464.01
Regular price
Sale price
Rs. 4,464.01
Taxes included.
Equivalent to: 6214 1214 214 214K 214S 3214
In stock
Price Break
10+
Rs. 3,972.97
19+
Rs. 3,749.77
29+
Rs. 3,705.13
39+
Rs. 3,660.49
49+
Rs. 3,615.85
74+
Rs. 3,571.21
99+
Rs. 3,348.01
199+
Rs. 3,303.37
249+
Rs. 3,258.73
499+
Rs. 3,214.09
999+
Rs. 3,124.81
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6214 1214 214 214K 214S 3214
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard

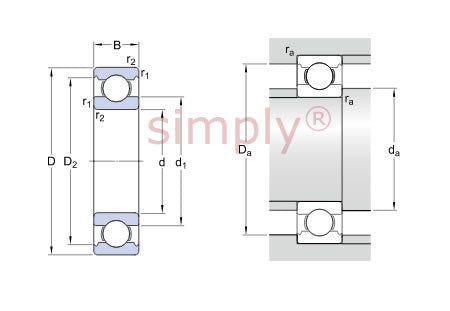

Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B | 24mm |
| Dynamic Load | 63.7 kN |
| Static Load | 45 kN |
| Fatigue load limit Pu | 1.9 |
| Reference Speed | 11000 rpm |
| Limiting Speed | 7000 rpm |
| Weight | 1.05kg |
| d1 | 87.1mm |
| D1 | 108mm |
| D2 | 111mm |
| r1r2 min | 1.5mm |
| da min | 79mm |
| Da max | 116mm |
| ra max | 1.5mm |
| Calc Factor kr | 0.025 |
| Calc Factor Cor f0 | 15 |
