SKU: 6211-NTN

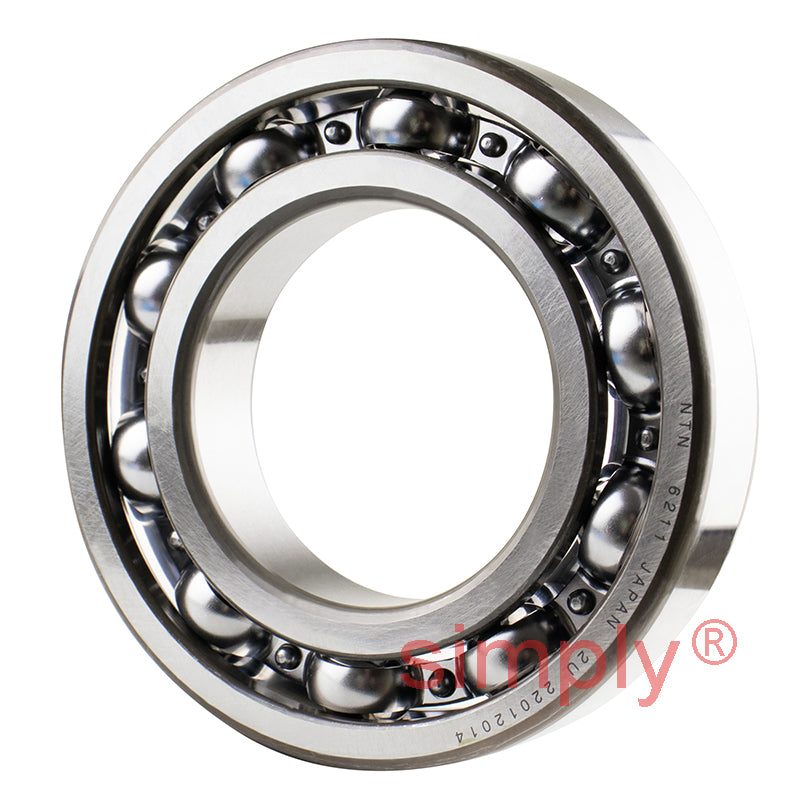

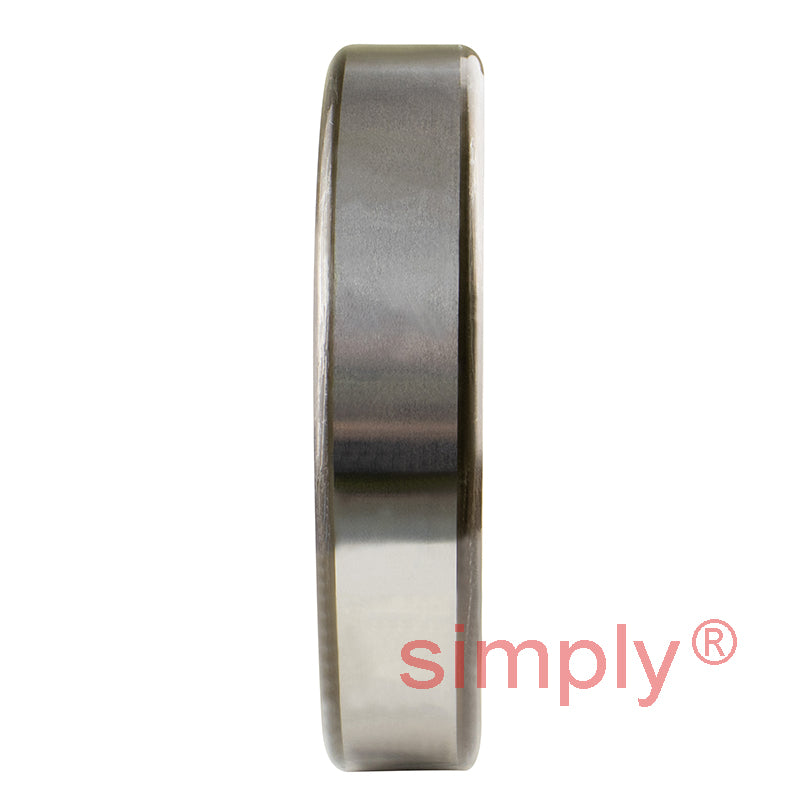

NTN 6211 Open Type Deep Groove Ball Bearing 55x100x21mm
NTN 6211 Open Type Deep Groove Ball Bearing 55x100x21mm
Regular price
Rs. 3,553.80
Regular price
Sale price
Rs. 3,553.80
Taxes included.
Equivalent to: 6211CM 211K 1211 211S 6211 3211 8A
In stock
Price Break
10+
Rs. 3,162.88
19+
Rs. 2,985.19
29+
Rs. 2,949.65
39+
Rs. 2,914.12
49+
Rs. 2,878.58
74+
Rs. 2,843.04
99+
Rs. 2,665.35
199+
Rs. 2,629.81
249+
Rs. 2,594.27
499+
Rs. 2,558.74
999+
Rs. 2,487.66
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6211CM 211K 1211 211S 6211 3211 8A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 100mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 48 kN |
| C<sub>or</sub> | 29.2 kN |
| C<sub>u</sub> | 2.29 kN |
| f<sub>0</sub> | 14.3 kN |
| Grease | 6400 rpm |
| Oil | 7600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 63mm |
| D<sub>a</sub> Max. | 92mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.601 kg |
