SKU: 6209-HT-270

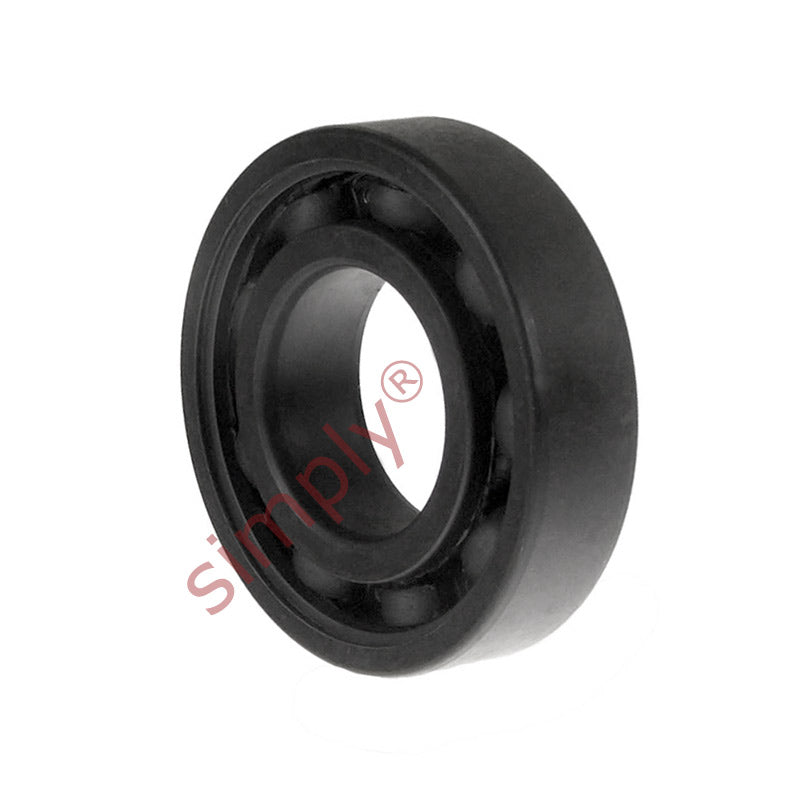

6209HT270 High Temp 270C High Speed Open Deep Groove Ball Bearing 45x85x19mm Max 650rpm
6209HT270 High Temp 270C High Speed Open Deep Groove Ball Bearing 45x85x19mm Max 650rpm
Regular price
Rs. 2,207.04
Regular price
Sale price
Rs. 2,207.04
Taxes included.
Equivalent to: 6209VA201 6209VA208 6209VA228
In stock
Price Break
10+
Rs. 1,964.27
19+
Rs. 1,853.91
29+
Rs. 1,831.84
39+
Rs. 1,809.77
49+
Rs. 1,787.70
74+
Rs. 1,765.63
99+
Rs. 1,655.28
199+
Rs. 1,633.21
249+
Rs. 1,611.14
499+
Rs. 1,589.07
999+
Rs. 1,544.93
Description
Description
HT270 Series High-Temperature Range Deep Groove Ball Bearings: With an operating range from minus 25 degrees up to plus 270 degrees Celsius these bearings are ideally situated in arduous conditions where rapid temperature changes are expected, refrigeration and baking equipment being a good example. Of standard ball bearing construction with an increased radial clearance to compensate for thermal expansion, they are manufactured without seals or shields. The bearings have a BLACK MANGANESE PHOSHPATE coating to the bearings outer surfaces
Benefits: Wide operating temperature range, can be re-lubricated
Equivalent: 6209VA201 6209VA208 6209VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 45mm |
|---|---|
| Outside diameter D | 85mm |
| Width W | 19mm |
| Static load max | 11.79 kN |
| Max operating temperature | 270 deg Celcius |
| Maximum speed | 650 rpm |
| Weight | 410 g |
