SKU: 6207NR-NSK

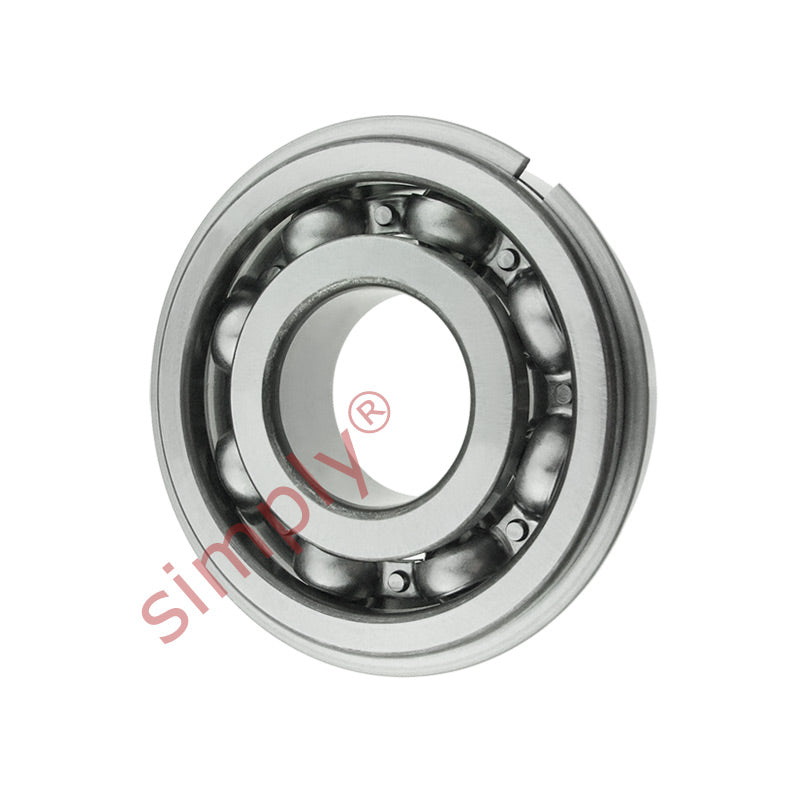

NSK 6207NR Open Type Deep Groove Ball Bearing With Snap Ring 35x72x17mm
NSK 6207NR Open Type Deep Groove Ball Bearing With Snap Ring 35x72x17mm
Regular price
Rs. 1,646.32
Regular price
Sale price
Rs. 1,646.32
Taxes included.
In stock
Price Break
10+
Rs. 1,465.22
19+
Rs. 1,382.91
29+
Rs. 1,366.45
39+
Rs. 1,349.98
49+
Rs. 1,333.52
74+
Rs. 1,317.06
99+
Rs. 1,234.74
199+
Rs. 1,218.28
249+
Rs. 1,201.81
499+
Rs. 1,185.35
999+
Rs. 1,152.42
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| r min | 1.1mm |
| Dynamic load Cr | 25700 N (2620 kgf) |
| Static load Cor | 15300 N (1560 kgf) |
| Factor | 13.8 |
| Speed in grease | 9500 rpm |
| Speed in oil | 11000 rpm |
| a max | 3.28mm |
| b min | 1.9mm |
| D1 max | 68.81mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 78.6mm |
| f max | 1.7mm |
| da2 min | 41.5mm |
| da2max | 44.5mm |
| Da2max | 65.5mm |
| ra max | 1mm |
| Dx min | 80mm |
| Cy max | 4.6mm |
| Weight | 0.284 kg |
