SKU: 6205LLB/L627-NTN

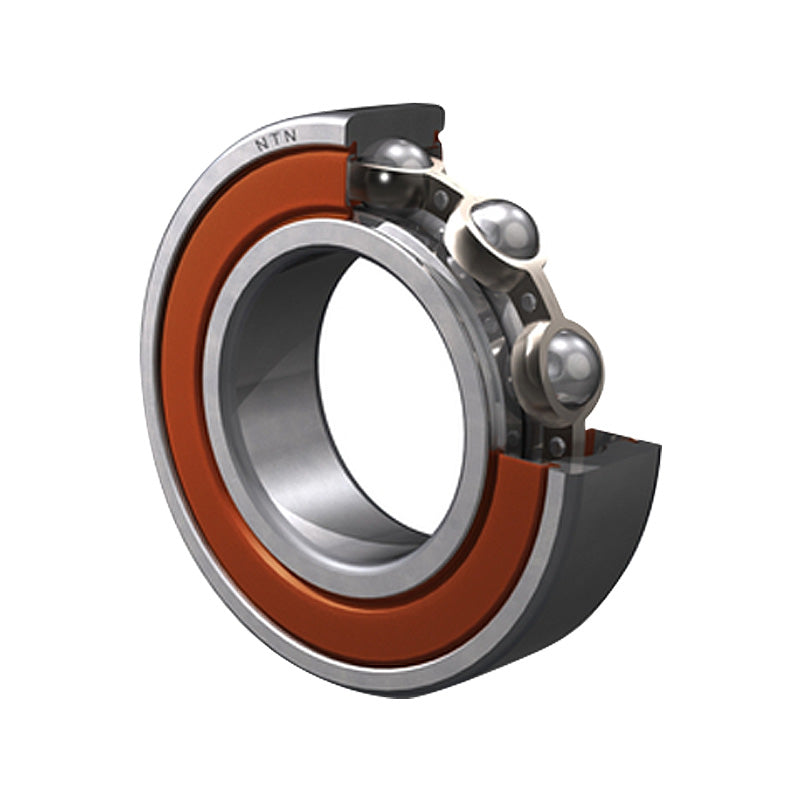

NTN 6205LLB/L627 Non-Contact Deep Groove Ball Bearing with Low Friction Seals 25x52x15mm
NTN 6205LLB/L627 Non-Contact Deep Groove Ball Bearing with Low Friction Seals 25x52x15mm
Regular price
Rs. 1,624.56
Regular price
Sale price
Rs. 1,624.56
Taxes included.
In stock
Price Break
10+
Rs. 1,445.86
19+
Rs. 1,364.63
29+
Rs. 1,348.38
39+
Rs. 1,332.14
49+
Rs. 1,315.89
74+
Rs. 1,299.65
99+
Rs. 1,218.42
199+
Rs. 1,202.17
249+
Rs. 1,185.93
499+
Rs. 1,169.68
999+
Rs. 1,137.19
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/L627" refers to Mobil Polyrex EM
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 52mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15.5 kN |
| C<sub>or</sub> | 7.85 kN |
| C<sub>u</sub> | 0.55 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 30mm |
| d<sub>a</sub> Max. | 32mm |
| D<sub>a</sub> Max. | 47mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.128 kg |
