SKU: 6205-NTN

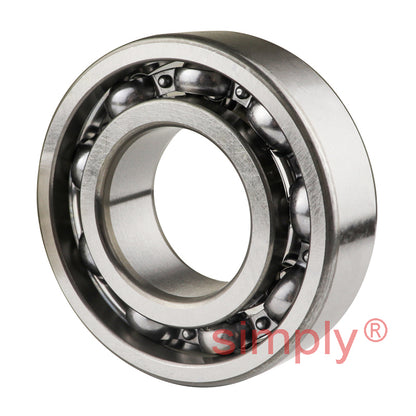

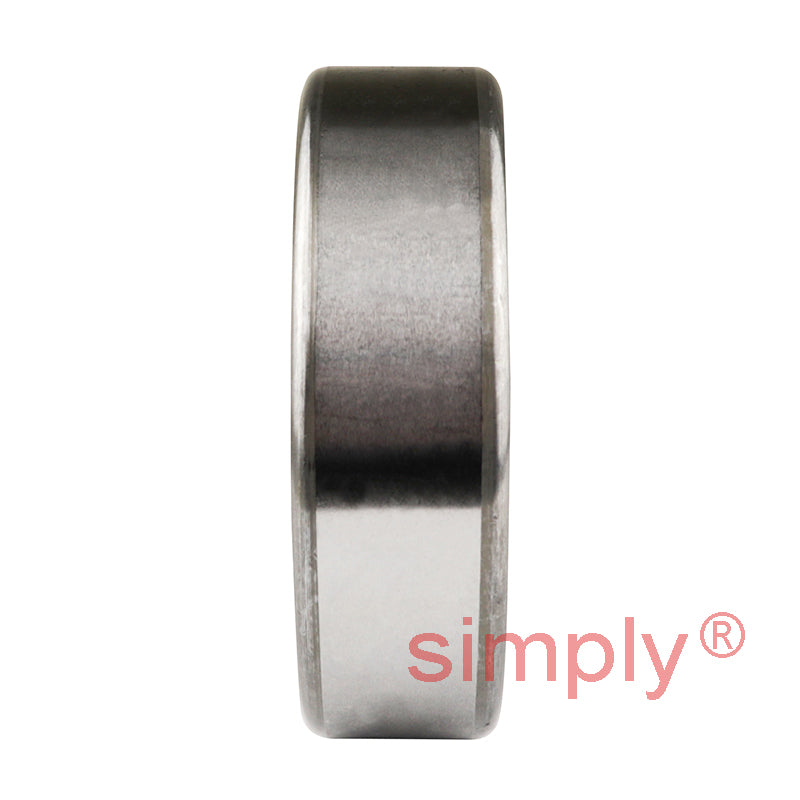

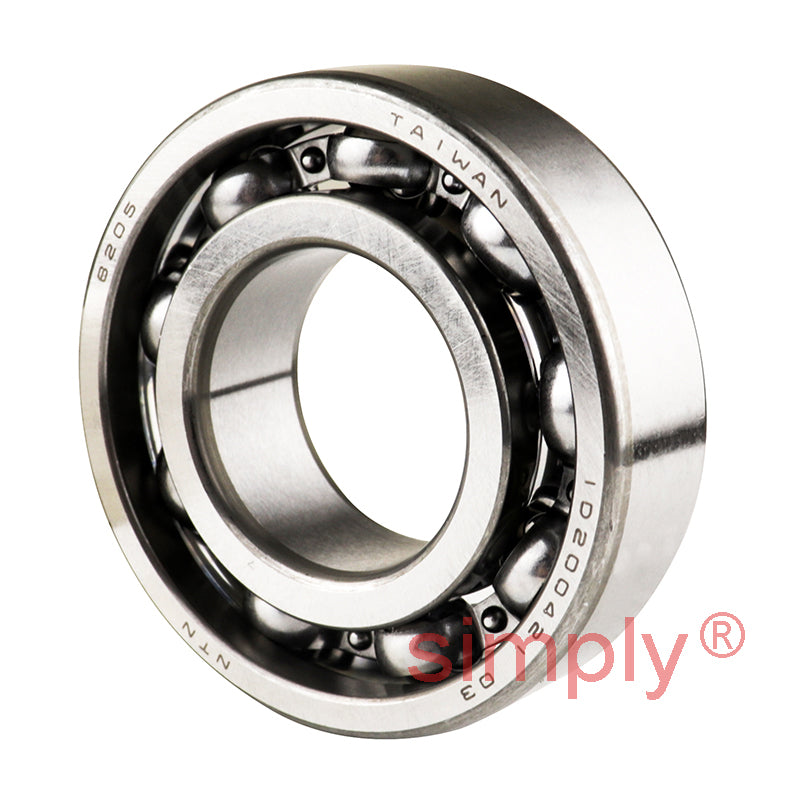

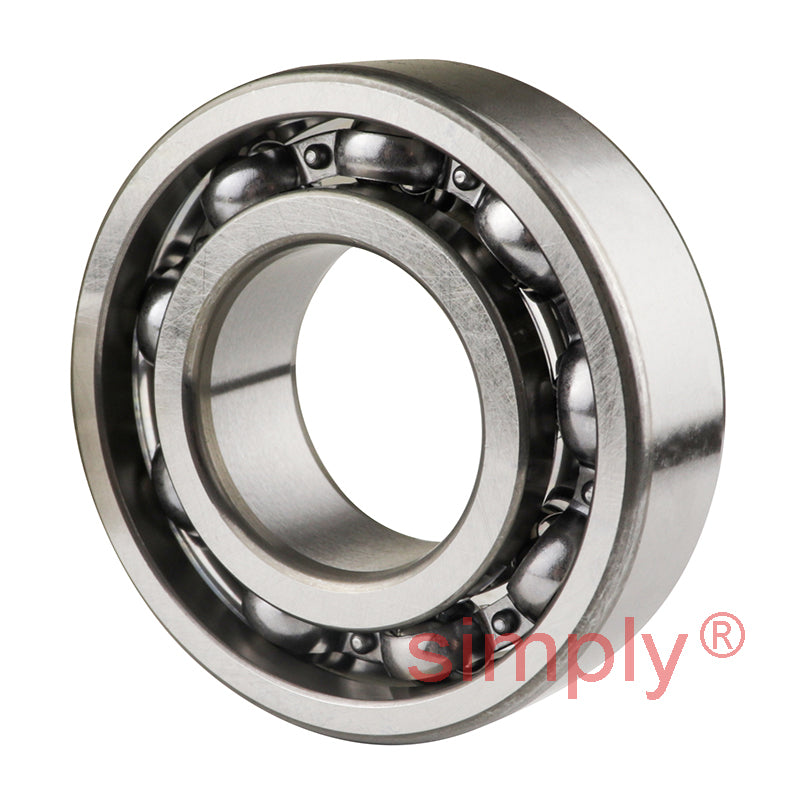

NTN 6205 Open Type Deep Groove Ball Bearing 25x52x15mm
NTN 6205 Open Type Deep Groove Ball Bearing 25x52x15mm
Regular price
Rs. 914.05
Regular price
Sale price
Rs. 914.05
Taxes included.
Equivalent to: 6205CM 205K 1205 205S 6205 3205 2A25
In stock
Price Break
10+
Rs. 813.50
19+
Rs. 767.80
29+
Rs. 758.66
39+
Rs. 749.52
49+
Rs. 740.38
74+
Rs. 731.24
99+
Rs. 685.54
199+
Rs. 676.40
249+
Rs. 667.26
499+
Rs. 658.12
999+
Rs. 639.84
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6205CM 205K 1205 205S 6205 3205 2A25
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 52mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15.5 kN |
| C<sub>or</sub> | 7.85 kN |
| C<sub>u</sub> | 0.55 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 30mm |
| D<sub>a</sub> Max. | 47mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.128 kg |
