SKU: 6204ZZC4-NSK

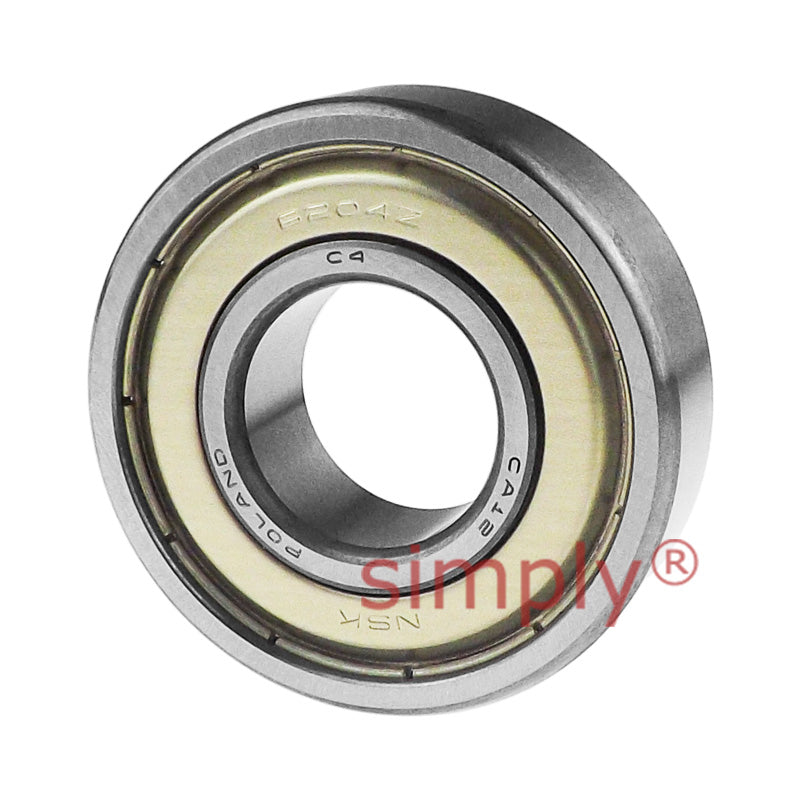

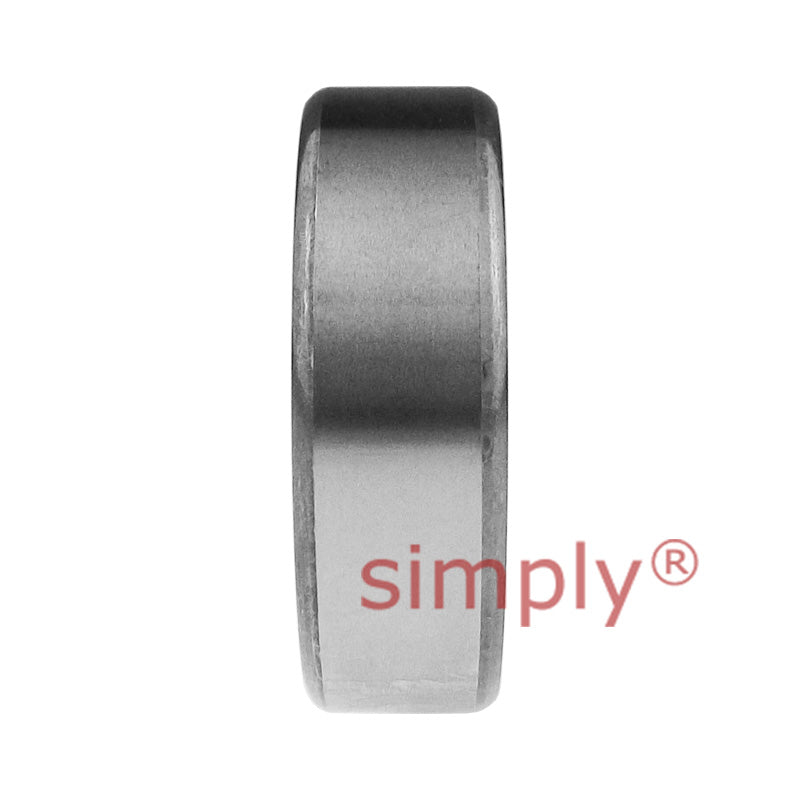

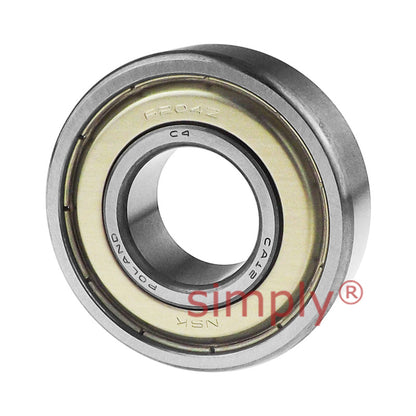

NSK 6204ZZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
NSK 6204ZZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Regular price
Rs. 2,265.93
Regular price
Sale price
Rs. 2,265.93
Taxes included.
Equivalent to: 6204ZZC4 6204.2ZC4 62042ZRC4
In stock
Price Break
10+
Rs. 2,016.68
19+
Rs. 1,903.38
29+
Rs. 1,880.72
39+
Rs. 1,858.06
49+
Rs. 1,835.40
74+
Rs. 1,812.74
99+
Rs. 1,699.45
199+
Rs. 1,676.79
249+
Rs. 1,654.13
499+
Rs. 1,631.47
999+
Rs. 1,586.15
Description
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6204ZZC4 6204.2ZC4 62042ZRC4
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load kN | 12.8 kN |
| Static load kN | 6.6 kN |
| Speed in grease | 15000 rpm |
| Speed in oil | 15000 rpm |
| Weight | 0.103 kg |
