SKU: 62/28NR-NSK

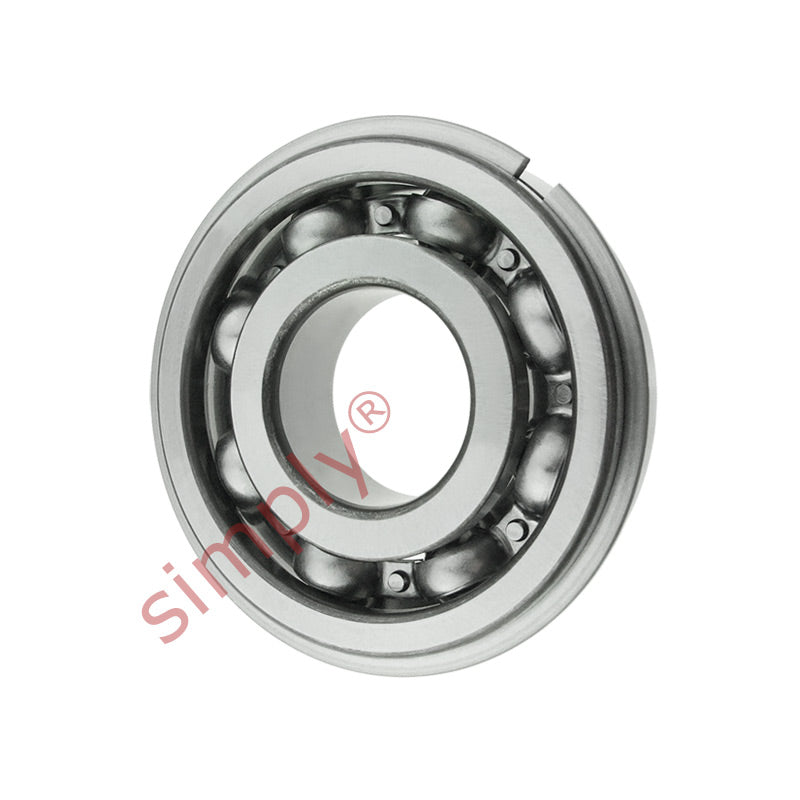

NSK 62/28NR Open Type Deep Groove Ball Bearing With Snap Ring 28x58x16mm
NSK 62/28NR Open Type Deep Groove Ball Bearing With Snap Ring 28x58x16mm
Regular price
Rs. 1,360.84
Regular price
Sale price
Rs. 1,360.84
Taxes included.
In stock
Price Break
10+
Rs. 1,211.15
19+
Rs. 1,143.11
29+
Rs. 1,129.50
39+
Rs. 1,115.89
49+
Rs. 1,102.28
74+
Rs. 1,088.67
99+
Rs. 1,020.63
199+
Rs. 1,007.02
249+
Rs. 993.41
499+
Rs. 979.80
999+
Rs. 952.59
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 58mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 28mm |
|---|---|
| D | 58mm |
| B | 16mm |
| r min | 1mm |
| Dynamic load Cr | 16600 N (1700 kgf) |
| Static load Cor | 9500 N (970 kgf) |
| Factor | 13.9 |
| Speed in grease | 12000 rpm |
| Speed in oil | 14000 rpm |
| a max | 2.46mm |
| b min | 1.35mm |
| D1 max | 55.6mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 63.7mm |
| f max | 1.12mm |
| da2 min | 33mm |
| da2max | 35.5mm |
| Da2max | 53mm |
| ra max | 1mm |
| Dx min | 64.5mm |
| Cy max | 3.3mm |
| Weight | 0.175 kg |
