SKU: 61924-2Z-EU

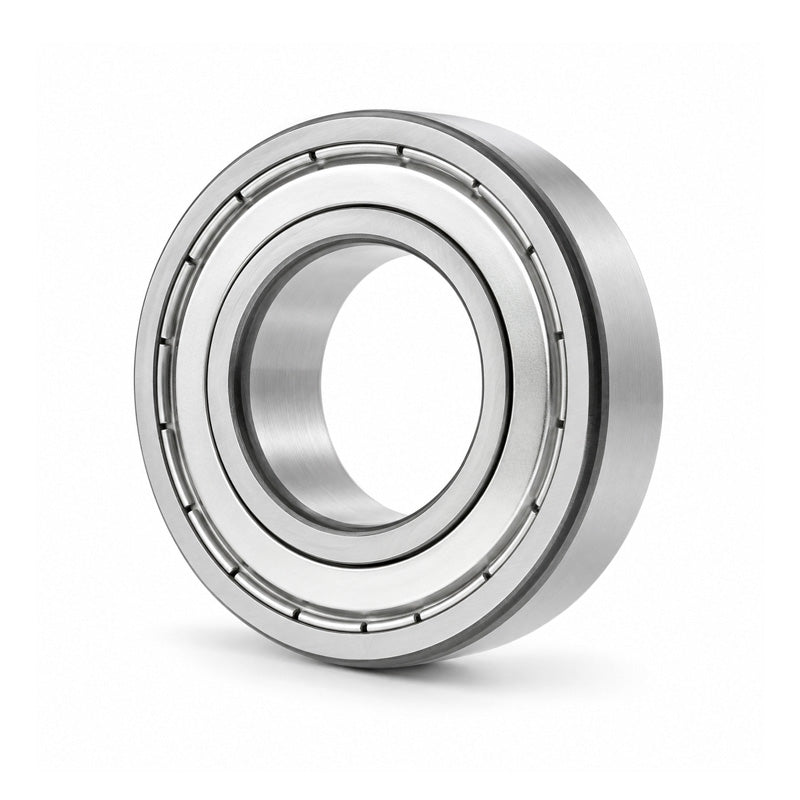

6924ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 120x165x22mm
Equivalent to: 61924ZZE 61924ZZ 61924.2Z 61924KDD 61924DD 61924FF 6924ZZE 6924ZZ 69242Z 6924.2Z 6924KDD 6924DD 69242ZR 6924FF 619242ZR 61924ZZE 61924ZZ 619242ZR 619242RS2
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61924ZZE 61924ZZ 61924.2Z 61924KDD 61924DD 61924FF 6924ZZE 6924ZZ 69242Z 6924.2Z 6924KDD 6924DD 69242ZR 6924FF 619242ZR 61924ZZE 61924ZZ 619242ZR 619242RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 165mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 120mm |
|---|---|
| D | 165mm |
| B | 22mm |
| r min | 1.1mm |
| Dynamic load Cr | 57.2 kN |
| Static load Cor | 56.9 kN |
| Speed in grease | 3800 rpm |
| Speed in oil | 4400 rpm |
