SKU: 61904-2Z-EU

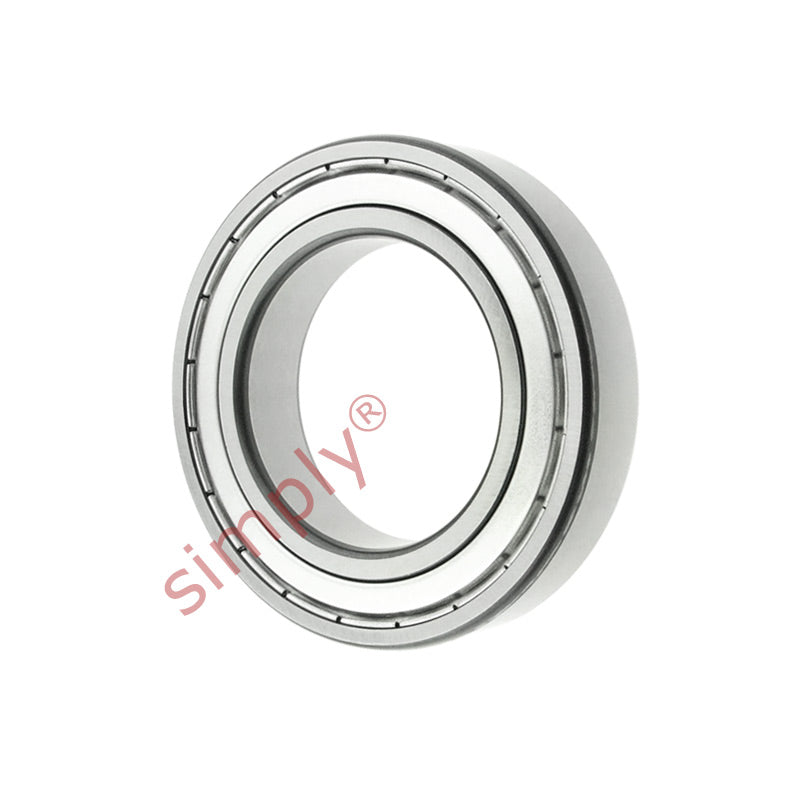

6904ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 20x37x9mm
Equivalent to: 61904ZZE 61904ZZ 61904.2Z 61904KDD 61904DD 61904FF 6904ZZE 6904ZZ 69042Z 6904.2Z 6904KDD 6904DD 69042ZR 6904FF 619042ZR 61904ZZE 61904ZZ 619042ZR 619042RS2
In stock
Price Break
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61904ZZE 61904ZZ 61904.2Z 61904KDD 61904DD 61904FF 6904ZZE 6904ZZ 69042Z 6904.2Z 6904KDD 6904DD 69042ZR 6904FF 619042ZR 61904ZZE 61904ZZ 619042ZR 619042RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 9mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 9mm |
| r min | 0.3mm |
| Dynamic load Cr | 6.35 kN |
| Static load Cor | 3.7 kN |
| Speed in grease | 19000 rpm |
| Speed in oil | 23000 rpm |
