SKU: 61830-SKF

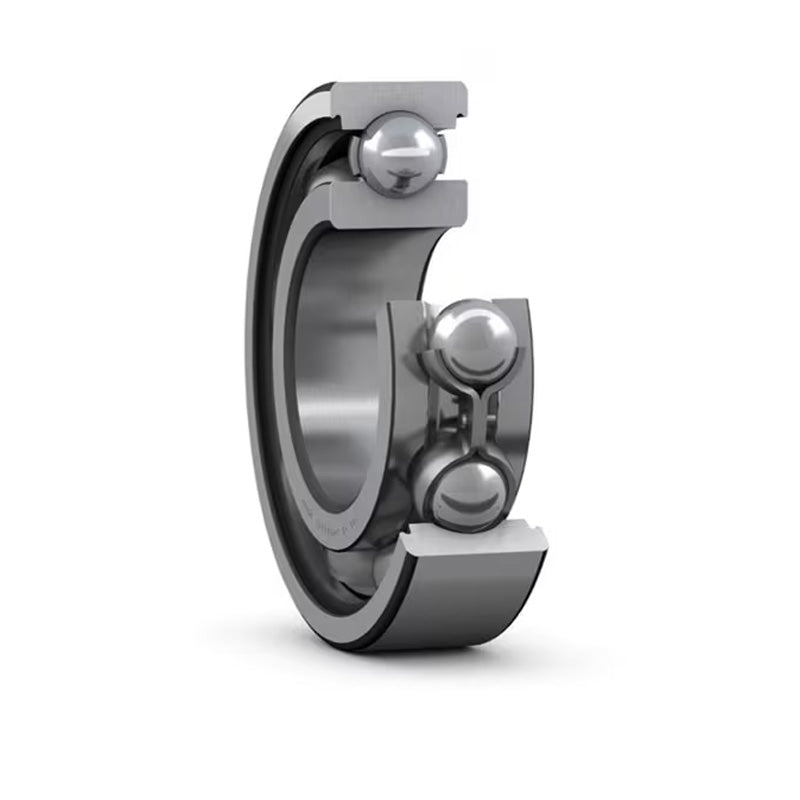

SKF 61830 Open Type Thin Section Deep Groove Ball Bearing 150x190x20mm
SKF 61830 Open Type Thin Section Deep Groove Ball Bearing 150x190x20mm
Regular price
Rs. 40,085.24
Regular price
Sale price
Rs. 40,085.24
Taxes included.
In stock
Price Break
10+
Rs. 35,675.86
19+
Rs. 33,671.60
29+
Rs. 33,270.75
39+
Rs. 32,869.90
49+
Rs. 32,469.04
74+
Rs. 32,068.19
99+
Rs. 30,063.93
199+
Rs. 29,663.08
249+
Rs. 29,262.23
499+
Rs. 28,861.37
999+
Rs. 28,059.67
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 190mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 150mm |
|---|---|
| D | 190mm |
| B | 20mm |
| Dynamic load | 48.8 kN |
| Static load | 61 kN |
| Fatigue load limit Pu | 1.96 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 4300 rpm |
| Weight | 1.4 kg |
| d1 | 163mm |
| D1 | 177mm |
| D2 | n/amm |
| r1r2 min | 1.1mm |
| da min | 156mm |
| Da max | 184mm |
| ra max | 1mm |
| Calculation factor kr | 0.015 |
| Calculation factor Cor | 17 |
