SKU: 60H-1-SD-NO26-RENOLD
Renold SD 60H-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold SD 60H-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
Rs. 903.81
Regular price
Sale price
Rs. 903.81
Taxes included.
In stock
Price Break
10+
Rs. 804.39
19+
Rs. 759.20
29+
Rs. 750.16
39+
Rs. 741.12
49+
Rs. 732.09
74+
Rs. 723.05
99+
Rs. 677.86
199+
Rs. 668.82
249+
Rs. 659.78
499+
Rs. 650.74
999+
Rs. 632.67
Description
Description

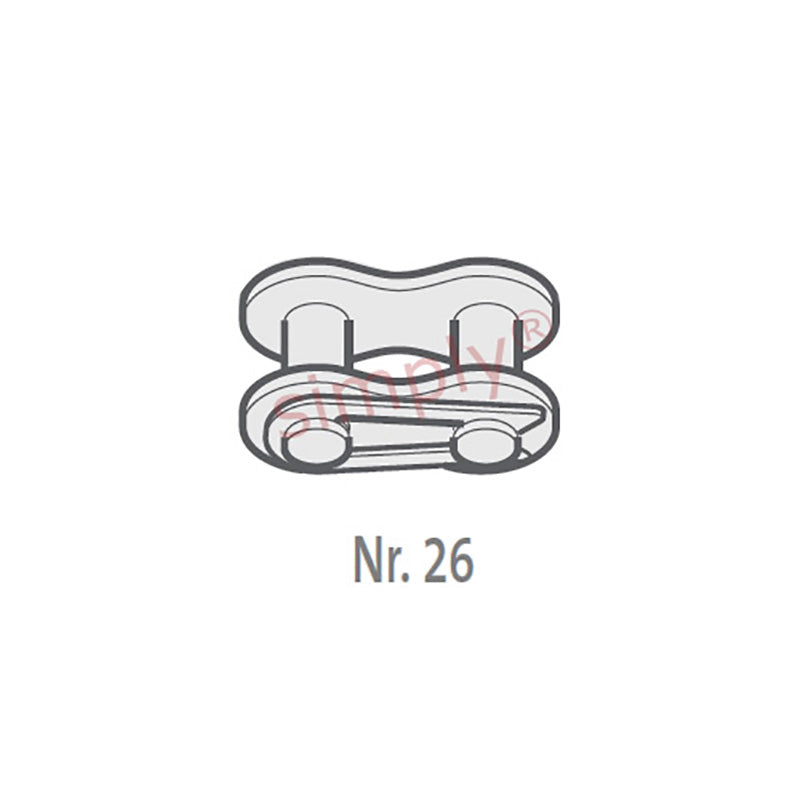

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.6mm |
| Roller Diameter max (C) | 11.9mm |
| Plate Height max (D) | 18mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 28.8mm |
| ISO606 Tensile Strength min | 3245 N |
| Weight | 1.97kg/m |
