SKU: 608ZZC3/5K-NTN

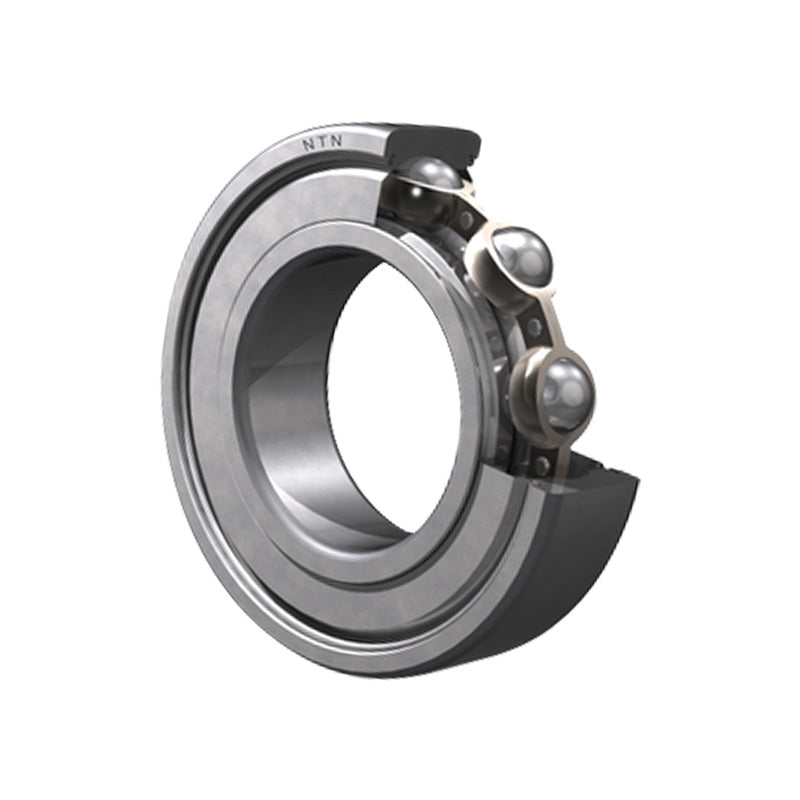

NTN 608ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 8x22x7mm
NTN 608ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 8x22x7mm
Regular price
Rs. 792.44
Regular price
Sale price
Rs. 792.44
Taxes included.
In stock
Price Break
10+
Rs. 705.27
19+
Rs. 665.65
29+
Rs. 657.73
39+
Rs. 649.80
49+
Rs. 641.88
74+
Rs. 633.95
99+
Rs. 594.33
199+
Rs. 586.41
249+
Rs. 578.48
499+
Rs. 570.56
999+
Rs. 554.71
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 22mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 8mm |
| D | 22mm |
| B | 7mm |
| r<sub>s</sub> min | 7mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 3.7 kN |
| C<sub>or</sub> | 1.4 kN |
| C<sub>u</sub> | 0.097 kN |
| f<sub>0</sub> | 12.5 kN |
| Grease | 34000 rpm |
| Oil | 23000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 10mm |
| D<sub>a</sub> Max. | 20mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.012 kg |
