SKU: 6044KM/W64-SKF

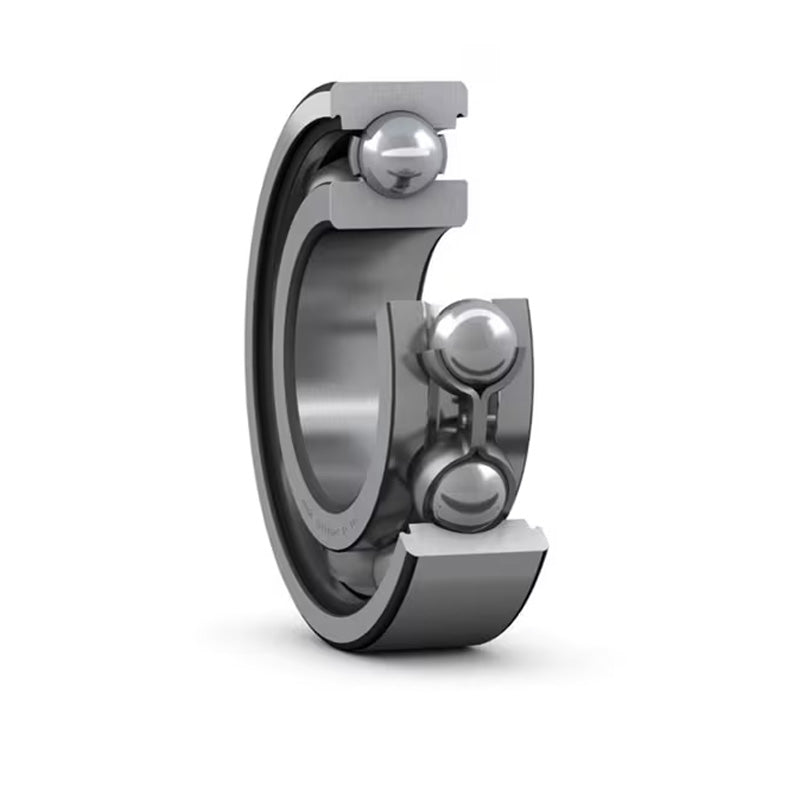

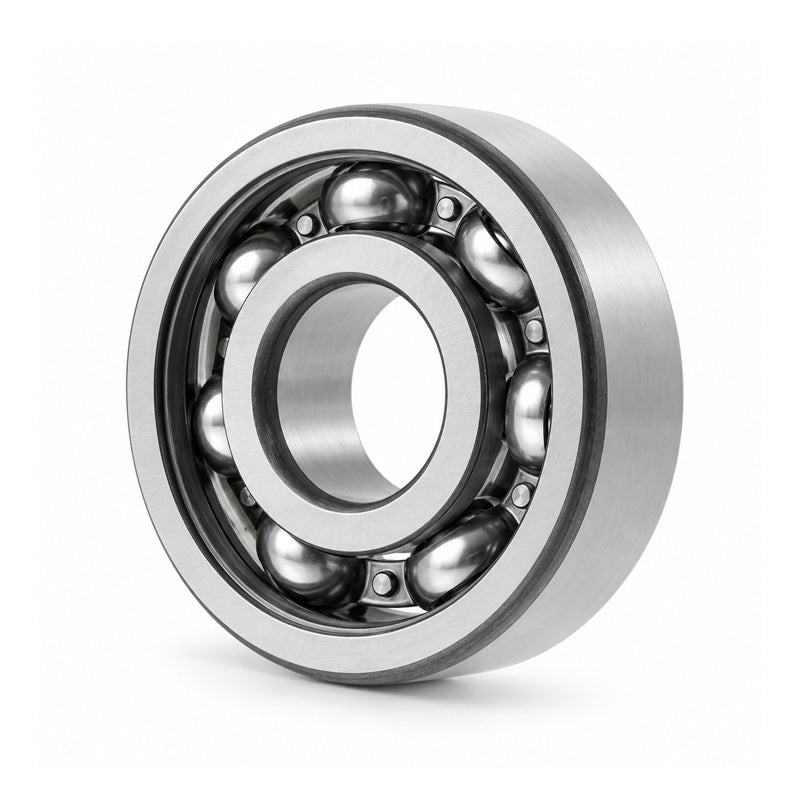

SKF 6044KMW64 SPECIAL TAPER BORE Open Type Deep Groove Ball Bearing 220x340x56mm
SKF 6044KMW64 SPECIAL TAPER BORE Open Type Deep Groove Ball Bearing 220x340x56mm
Regular price
Rs. 217,453.96
Regular price
Sale price
Rs. 217,453.96
Taxes included.
In stock
Price Break
10+
Rs. 193,534.02
19+
Rs. 182,661.33
29+
Rs. 180,486.79
39+
Rs. 178,312.25
49+
Rs. 176,137.71
74+
Rs. 173,963.17
99+
Rs. 163,090.47
199+
Rs. 160,915.93
249+
Rs. 158,741.39
499+
Rs. 156,566.85
999+
Rs. 152,217.77
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 340mm
- Width:
- 56mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 220mm |
|---|---|
| D | 340mm |
| B | 56mm |
| C | 247kN |
| Co | 290kN |
| Pu | 7.35kN |
| Referance Speed | 4000 r/min |
| Limiting Speed | 3200 r/min |
| d1 | 258.3mm |
| D1 | 301.7mm |
| r1r2min | 3mm |
| damin | 233mm |
| Damax | 327mm |
| ramax | 2.5mm |
| Calculationfactor f0 | 15.6 |
| Weight | 18.3kg |
