SKU: 6020LU-NTN

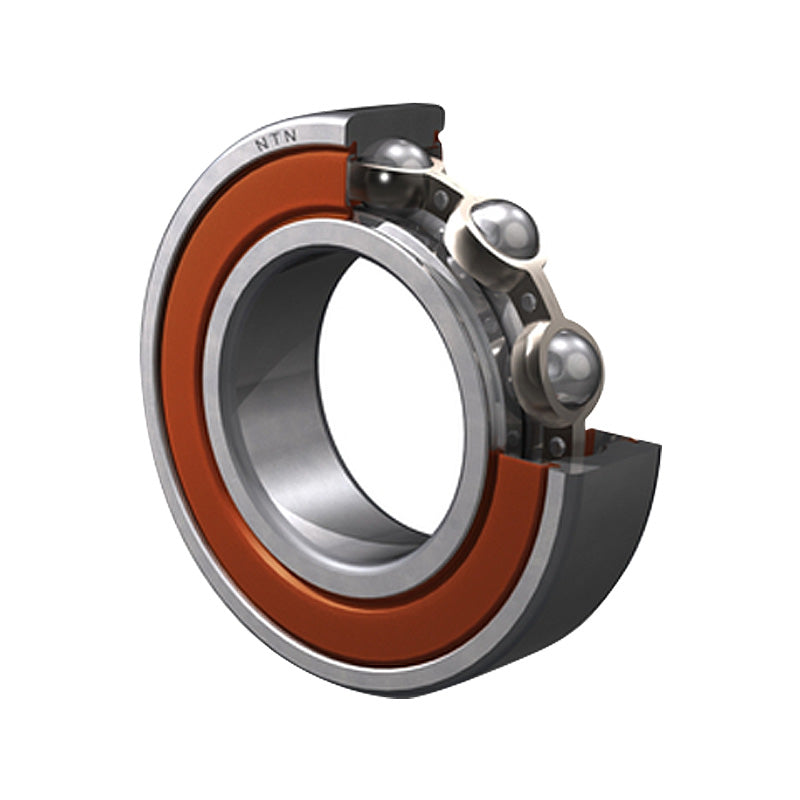

NTN 6020LU One Contact Rubber Seal Type Deep Groove Ball Bearing 100x150x24mm
NTN 6020LU One Contact Rubber Seal Type Deep Groove Ball Bearing 100x150x24mm
Regular price
Rs. 25,178.73
Regular price
Sale price
Rs. 25,178.73
Taxes included.
In stock
Price Break
10+
Rs. 22,409.07
19+
Rs. 21,150.13
29+
Rs. 20,898.35
39+
Rs. 20,646.56
49+
Rs. 20,394.77
74+
Rs. 20,142.98
99+
Rs. 18,884.05
199+
Rs. 18,632.26
249+
Rs. 18,380.47
499+
Rs. 18,128.69
999+
Rs. 17,625.11
Description
Description
This bearing has one sided rubber sealed and one open side.
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- Open and Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 150mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 66.5 Kn |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 3.5 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 2600 rpm |
| --- | Fitting Dimensions |
| Oil | 108 rpm |
| d<sub>a</sub> Min. | 110mm |
| D<sub>a</sub> Max. | 142mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 1.15 kg |
