SKU: 6020-ZZ/C3-NACHI

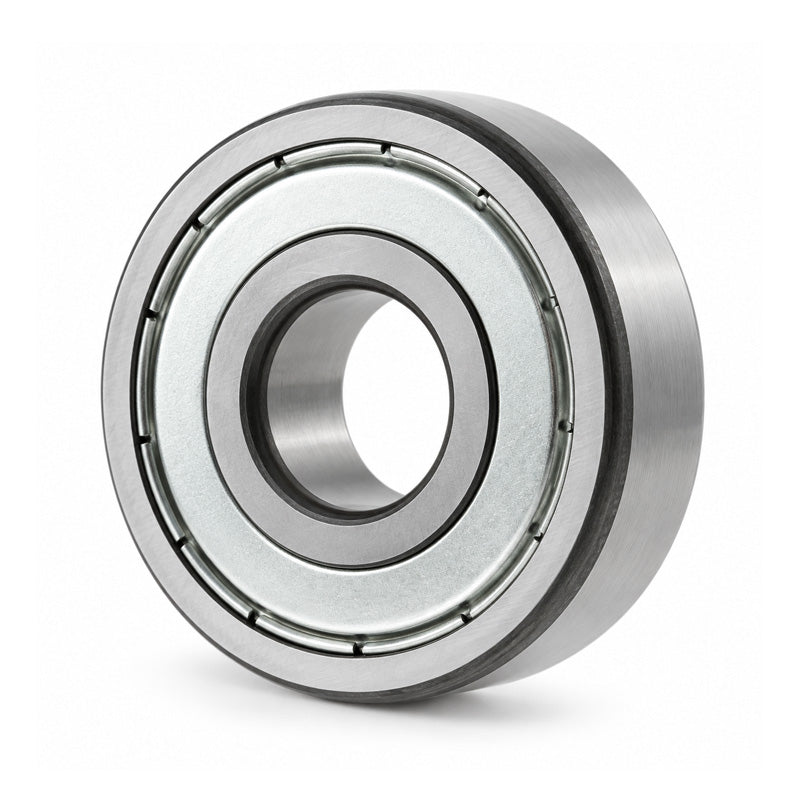

NACHI 6020ZZC3 Metal Shielded Deep Groove Ball Bearing 100x150x24mm
NACHI 6020ZZC3 Metal Shielded Deep Groove Ball Bearing 100x150x24mm
Regular price
Rs. 13,717.96
ex VAT
Regular price
Sale price
Rs. 13,717.96
ex VAT
Equivalent to: 6020ZZEC3 60202ZC3 6020.2ZC3 6020KDDC3 6020DDC3 60202ZRC3 6020FFC3
In stock
Price Break
10+
Rs. 12,208.98
19+
Rs. 11,523.09
29+
Rs. 11,385.91
39+
Rs. 11,248.73
49+
Rs. 11,111.55
74+
Rs. 10,974.37
99+
Rs. 10,288.47
199+
Rs. 10,151.29
249+
Rs. 10,014.11
499+
Rs. 9,876.93
999+
Rs. 9,602.57
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6020ZZEC3 60202ZC3 6020.2ZC3 6020KDDC3 6020DDC3 60202ZRC3 6020FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 100mm |
|---|---|
| Outside Diameter D | 150mm |
| Width B | 24mm |
| Min radius r | 1.5mm |
| Dynamic load | 60000 kN |
| Static load | 54000 kN |
| Max speed | 4300 rpm |
| da min | 107mm |
| Da max | 143mm |
| ra max | 1.5mm |
| Weight | 1.26 kg |
