SKU: 6019-NTN

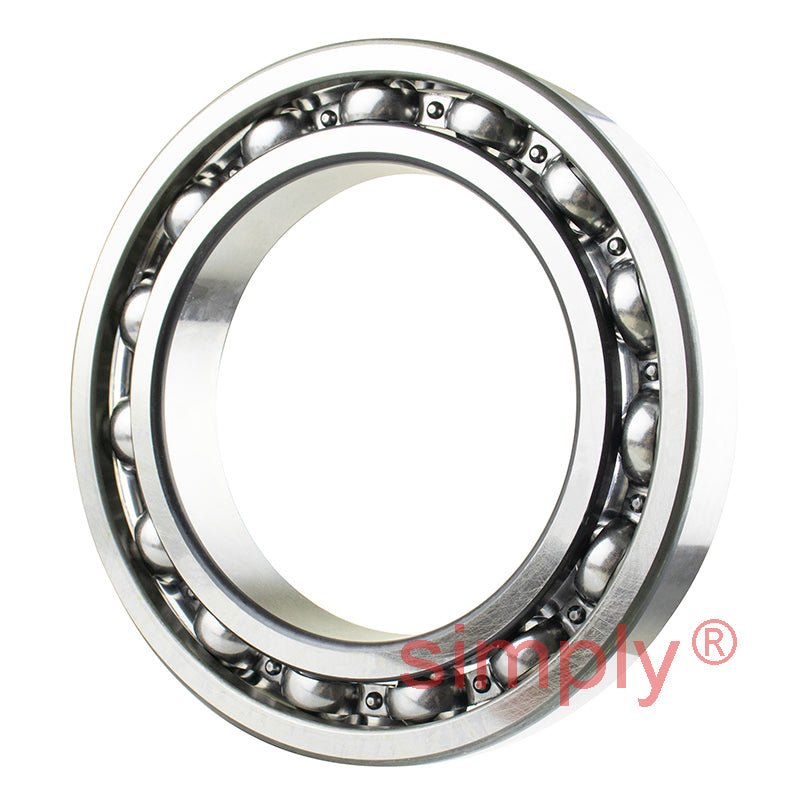

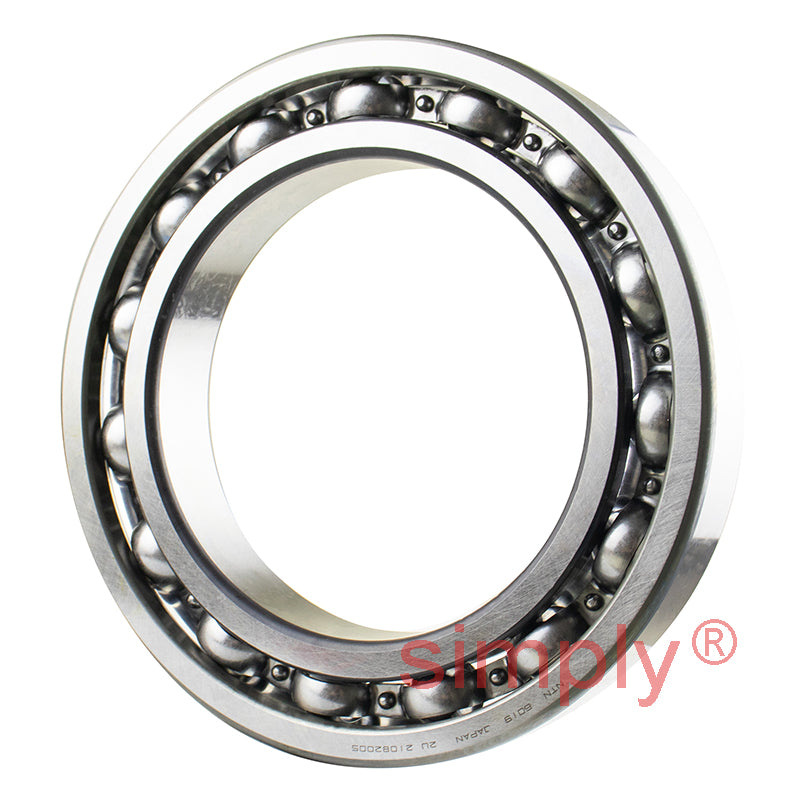

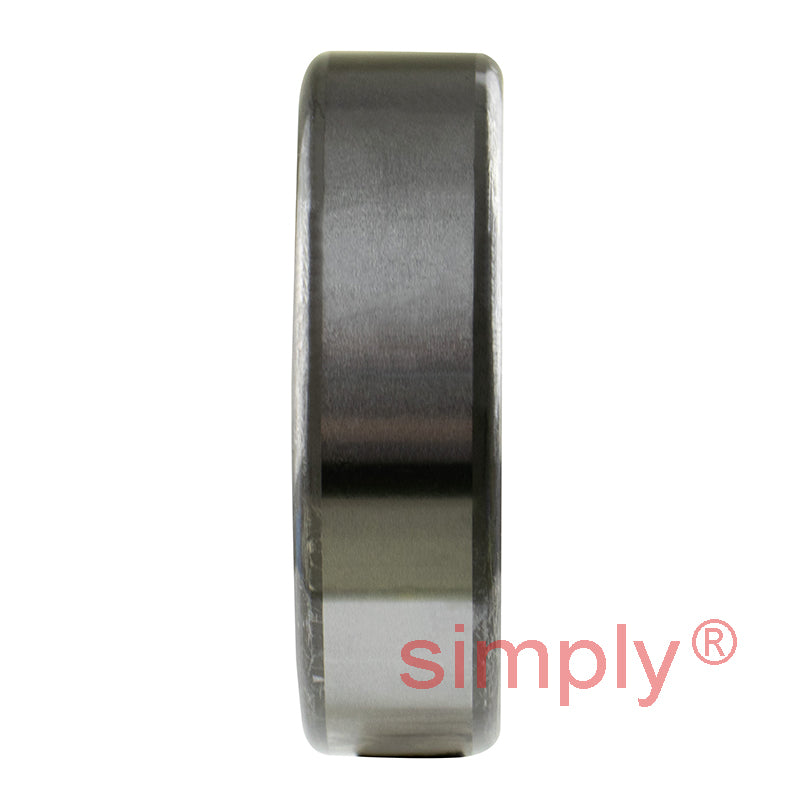

NTN 6019 Open Type Deep Groove Ball Bearing 95x145x24mm
NTN 6019 Open Type Deep Groove Ball Bearing 95x145x24mm
Regular price
Rs. 12,402.46
Regular price
Sale price
Rs. 12,402.46
Taxes included.
Equivalent to: 6019CM 9119K 9119 119KS 6119 3L19 EL95 ELL95
In stock
Price Break
10+
Rs. 11,038.19
19+
Rs. 10,418.07
29+
Rs. 10,294.04
39+
Rs. 10,170.02
49+
Rs. 10,045.99
74+
Rs. 9,921.97
99+
Rs. 9,301.85
199+
Rs. 9,177.82
249+
Rs. 9,053.80
499+
Rs. 8,929.77
999+
Rs. 8,681.72
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6019CM 9119K 9119 119KS 6119 3L19 EL95 ELL95
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 145mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 95mm |
| D | 145mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 67 kN |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 3.55 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 4500 rpm |
| Oil | 5300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 103mm |
| D<sub>a</sub> Max. | 137mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 1.08 kg |
