SKU: 6018ZNR-NTN

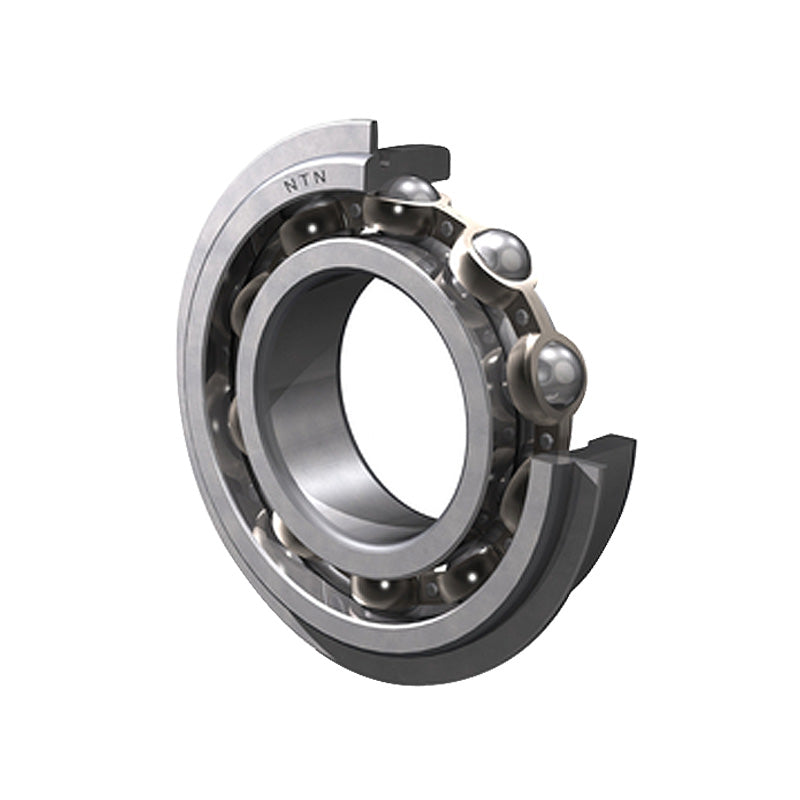

NTN 6018ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 90x140x24mm - Allow 2-3 Days
NTN 6018ZNR One Metal Shield Type Deep Groove Ball Bearing with Snap Ring 90x140x24mm - Allow 2-3 Days
Regular price
Rs. 9,839.23
ex VAT
Regular price
Sale price
Rs. 9,839.23
ex VAT
In stock
Price Break
10+
Rs. 8,756.91
19+
Rs. 8,264.95
29+
Rs. 8,166.56
39+
Rs. 8,068.17
49+
Rs. 7,969.78
74+
Rs. 7,871.38
99+
Rs. 7,379.42
199+
Rs. 7,281.03
249+
Rs. 7,182.64
499+
Rs. 7,084.25
999+
Rs. 6,887.46
Couldn't load pickup availability
Description
Description
This bearing has one sided metal shielded and one open side.
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 140mm
- Width:
- 24mm
- Seals / Shields:
- Open and Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 90mm |
| D | 140mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| rNS Min. | 0.5 |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 64.5 Kn |
| C<sub>or</sub> | 49.5 kN |
| C<sub>u</sub> | 3.45 kN |
| f<sub>0</sub> | 15.6 kN |
| Grease | 4700 rpm |
| Oil | 5600 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 135.23 |
| a Max. | 3.71 |
| b Min. | 3.1 |
| r<sub>o</sub> Max. | 0.6 |
| D<sub>2</sub> Max. | 149.7 |
| f Max. | 2.82 |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 98mm |
| d<sub>a</sub> Max. | 102mm |
| D<sub>a</sub> Max. | 132mm |
| D<sub>X</sub> (approx) | 152 |
| C<sub>Y</sub> Max. | 6.1 |
| C<sub>Z</sub> Min. | 2.9 |
| r<sub>as</sub> Max. | 1.5mm |
| r<sub>Nas</sub> Max. | 0.5 |
| Weight | 1.02 kg |
