SKU: 6018-ZZ/C3-NACHI

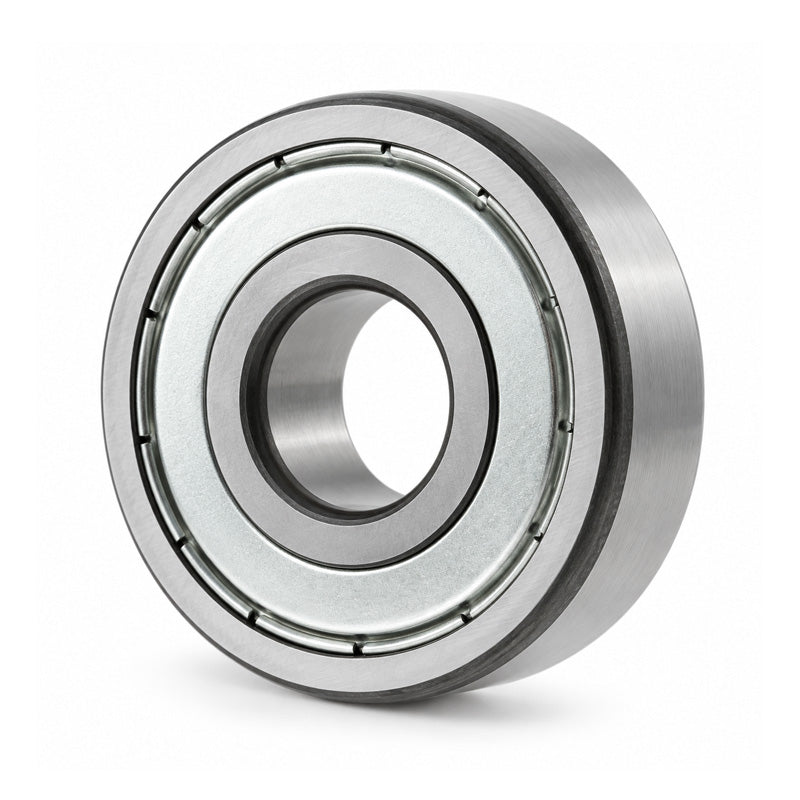

NACHI 6018ZZC3 Metal Shielded Deep Groove Ball Bearing 90x140x24mm
NACHI 6018ZZC3 Metal Shielded Deep Groove Ball Bearing 90x140x24mm
Regular price
Rs. 10,763.82
Regular price
Sale price
Rs. 10,763.82
Taxes included.
Equivalent to: 6018ZZEC3 60182ZC3 6018.2ZC3 6018KDDC3 6018DDC3 60182ZRC3 6018FFC3
In stock
Price Break
10+
Rs. 9,579.80
19+
Rs. 9,041.61
29+
Rs. 8,933.97
39+
Rs. 8,826.33
49+
Rs. 8,718.69
74+
Rs. 8,611.06
99+
Rs. 8,072.87
199+
Rs. 7,965.23
249+
Rs. 7,857.59
499+
Rs. 7,749.95
999+
Rs. 7,534.67
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6018ZZEC3 60182ZC3 6018.2ZC3 6018KDDC3 6018DDC3 60182ZRC3 6018FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 140mm
- Width:
- 24mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 90mm |
|---|---|
| Outside Diameter D | 140mm |
| Width B | 24mm |
| Min radius r | 1.5mm |
| Dynamic load | 58000 kN |
| Static load | 49500 kN |
| Max speed | 4800 rpm |
| da min | 97mm |
| Da max | 133mm |
| ra max | 1.5mm |
| Weight | 1.17 kg |
