SKU: 6015-ZZE/C3-NACHI

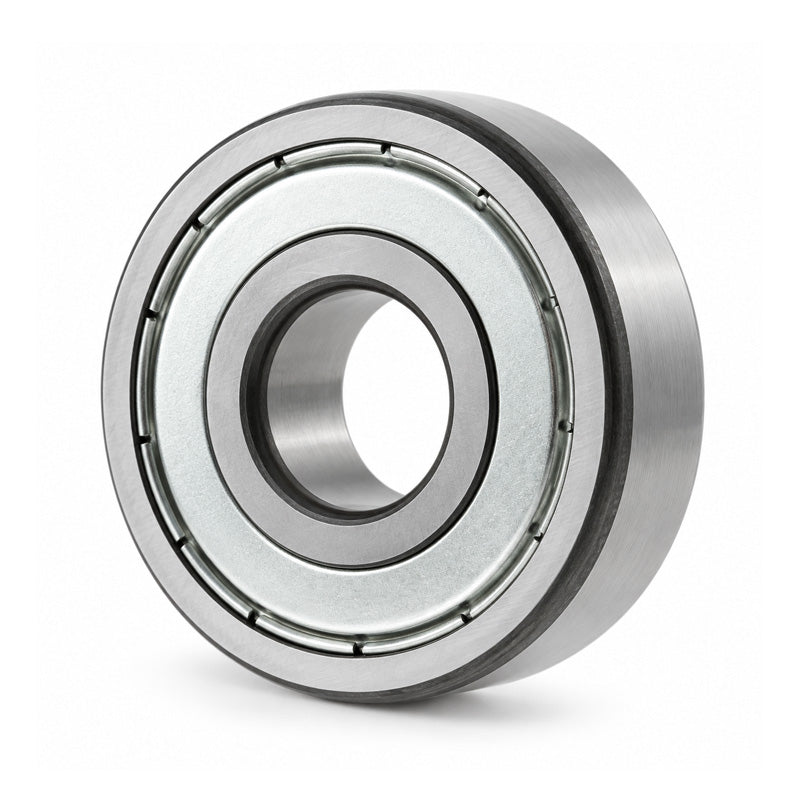

NACHI 6015ZZEC3 Metal Shielded Deep Groove Ball Bearing 75x115x20mm
NACHI 6015ZZEC3 Metal Shielded Deep Groove Ball Bearing 75x115x20mm
Regular price
Rs. 6,633.23
ex VAT
Regular price
Sale price
Rs. 6,633.23
ex VAT
Equivalent to: 6015ZZC3 60152ZC3 6015.2ZC3 6015KDDC3 6015DDC3 60152ZRC3 6015FFC3
In stock
Price Break
10+
Rs. 5,903.57
19+
Rs. 5,571.91
29+
Rs. 5,505.58
39+
Rs. 5,439.25
49+
Rs. 5,372.92
74+
Rs. 5,306.58
99+
Rs. 4,974.92
199+
Rs. 4,908.59
249+
Rs. 4,842.26
499+
Rs. 4,775.93
999+
Rs. 4,643.26
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6015ZZC3 60152ZC3 6015.2ZC3 6015KDDC3 6015DDC3 60152ZRC3 6015FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 115mm
- Width:
- 20mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 75mm |
|---|---|
| Outside Diameter D | 115mm |
| Width B | 20mm |
| Min radius r | 1.1mm |
| Dynamic load | 39500 kN |
| Static load | 33500 kN |
| Max speed | 5700 rpm |
| da min | 81mm |
| Da max | 109mm |
| ra max | 1mm |
| Weight | 0.645 kg |
