SKU: 6013-NTN

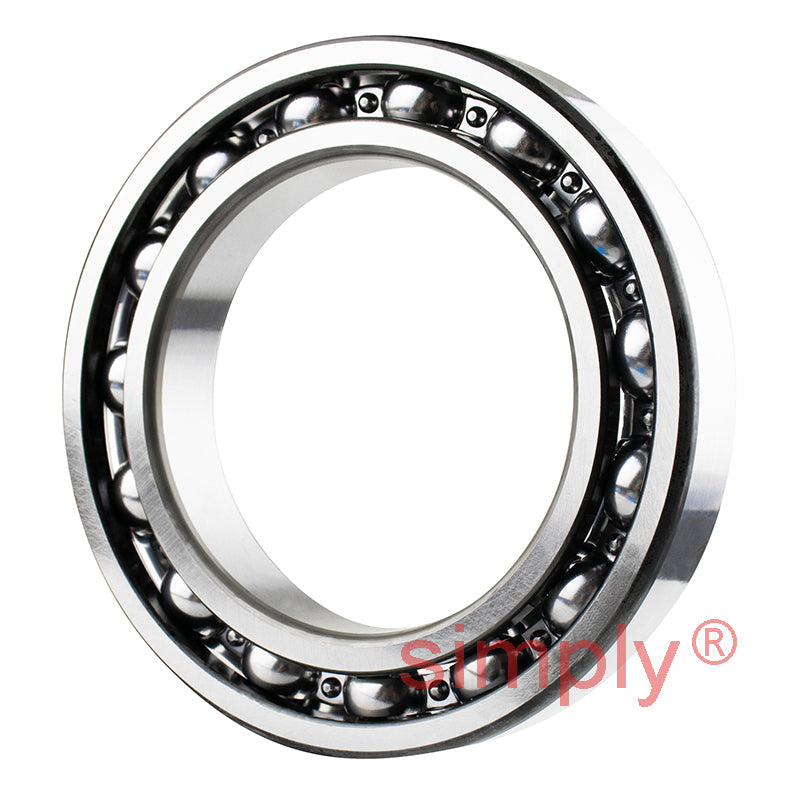

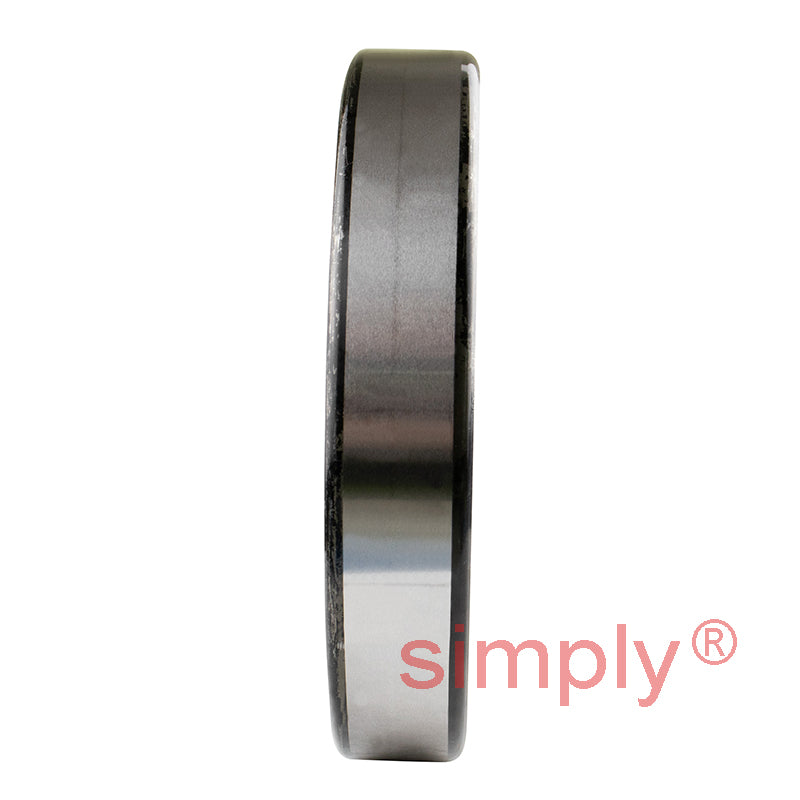

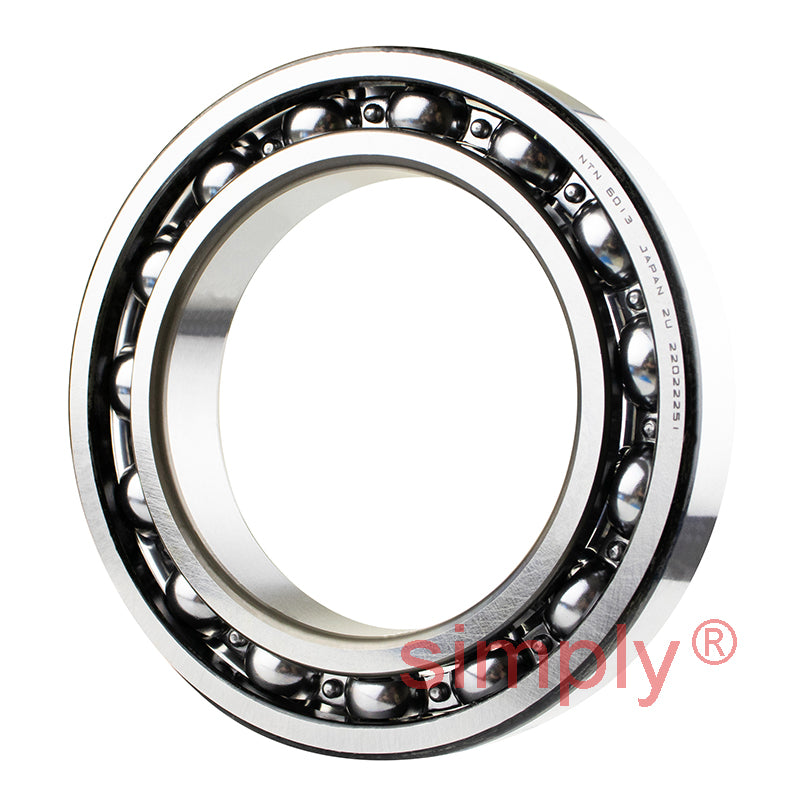

NTN 6013 Open Type Deep Groove Ball Bearing 65x100x18mm
NTN 6013 Open Type Deep Groove Ball Bearing 65x100x18mm
Regular price
Rs. 6,421.42
Regular price
Sale price
Rs. 6,421.42
Taxes included.
Equivalent to: 6013CM 9113K 9113 113KS 6113 3L13 EL65 ELL65
In stock
Price Break
10+
Rs. 5,715.06
19+
Rs. 5,393.99
29+
Rs. 5,329.78
39+
Rs. 5,265.56
49+
Rs. 5,201.35
74+
Rs. 5,137.14
99+
Rs. 4,816.07
199+
Rs. 4,751.85
249+
Rs. 4,687.64
499+
Rs. 4,623.42
999+
Rs. 4,494.99
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6013CM 9113K 9113 113KS 6113 3L13 EL65 ELL65
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 100mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 34 kN |
| C<sub>or</sub> | 25.2 kN |
| C<sub>u</sub> | 1.83 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 6500 rpm |
| Oil | 7700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 71.5mm |
| D<sub>a</sub> Max. | 93.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.421 kg |
