SKU: 6008NR-NSK

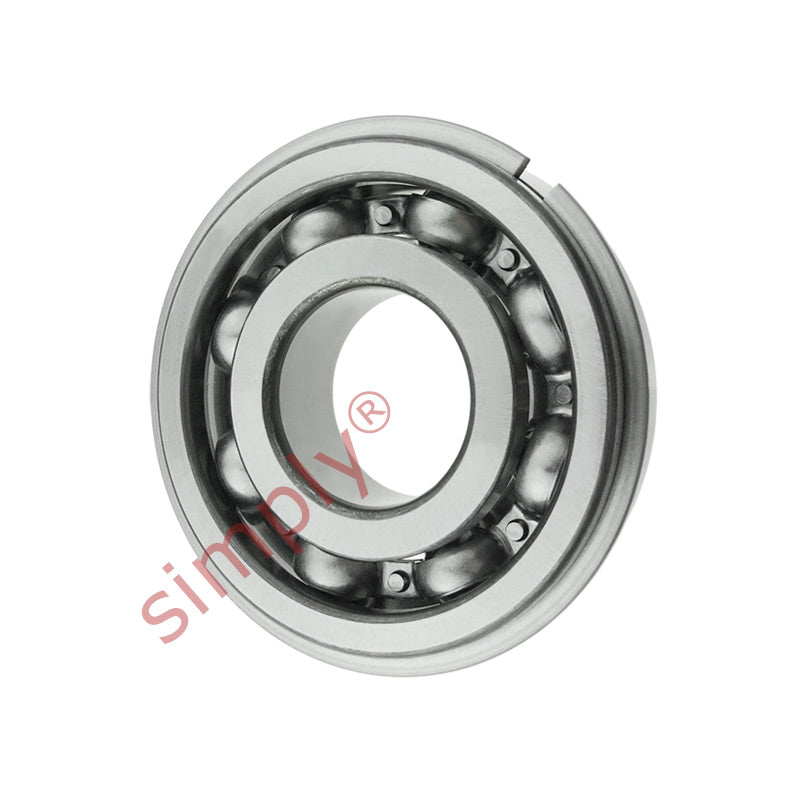

NSK 6008NR Open Type Deep Groove Ball Bearing With Snap Ring 40x68x15mm
NSK 6008NR Open Type Deep Groove Ball Bearing With Snap Ring 40x68x15mm
Regular price
Rs. 1,613.04
Regular price
Sale price
Rs. 1,613.04
Taxes included.
In stock
Price Break
10+
Rs. 1,435.61
19+
Rs. 1,354.95
29+
Rs. 1,338.82
39+
Rs. 1,322.69
49+
Rs. 1,306.56
74+
Rs. 1,290.43
99+
Rs. 1,209.78
199+
Rs. 1,193.65
249+
Rs. 1,177.52
499+
Rs. 1,161.39
999+
Rs. 1,129.13
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 40mm |
|---|---|
| D | 68mm |
| B | 15mm |
| r min | 1mm |
| Dynamic load Cr | 16800 N (1710 kgf) |
| Static load Cor | 11500 N (1180 kgf) |
| Factor | 15.3 |
| Speed in grease | 10000 rpm |
| Speed in oil | 12000 rpm |
| a max | 2.49mm |
| b min | 1.9mm |
| D1 max | 64.82mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 74.6mm |
| f max | 1.7mm |
| da2 min | 45mm |
| da2max | 47.5mm |
| Da2max | 63mm |
| ra max | 1mm |
| Dx min | 76mm |
| Cy max | 3.8mm |
| Weight | 0.19 kg |
