SKU: 6006ZZ/5K-NTN

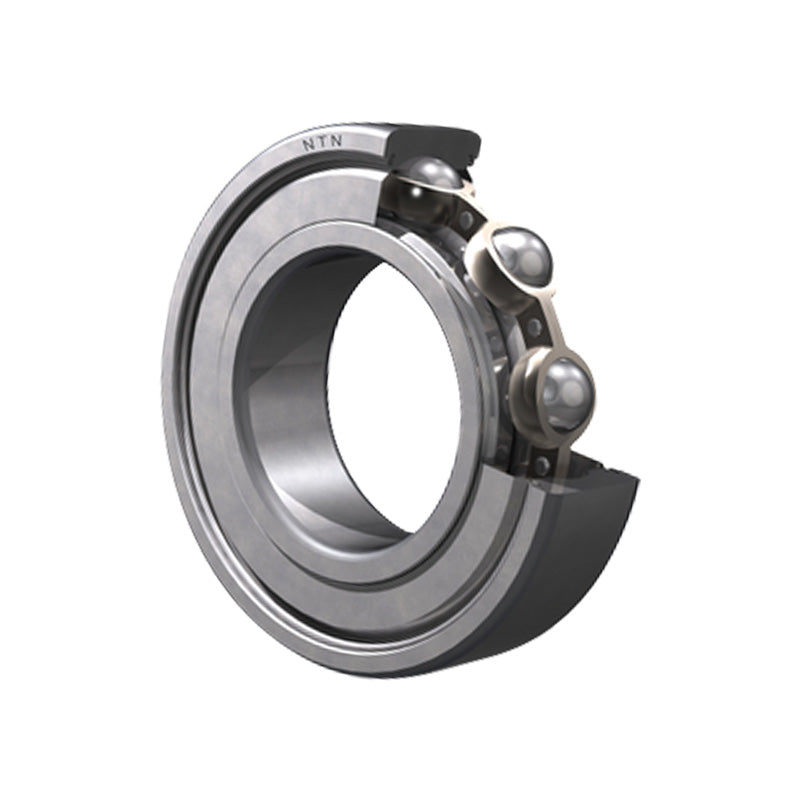

NTN 6006ZZ/5K Metal Shielded Type Deep Groove Ball Bearing 30x55x13mm
Equivalent to: 6006ZZCM 6006ZZ 6006ZZ 60062Z 6006ZZ 60062ZR 6006ZZE 6006FF 6006DD 6006DDC 6006KDDC EL302Z EL30ZZ 9106KDD 9106FF 106KSFF 773L06 6106PP
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6006ZZCM 6006ZZ 6006ZZ 60062Z 6006ZZ 60062ZR 6006ZZE 6006FF 6006DD 6006DDC 6006KDDC EL302Z EL30ZZ 9106KDD 9106FF 106KSFF 773L06 6106PP
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 55mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 14.7 kN |
| C<sub>or</sub> | 8.3 kN |
| C<sub>u</sub> | 0.65 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 35mm |
| d<sub>a</sub> Max. | 37mm |
| D<sub>a</sub> Max. | 50mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.116 kg |
