SKU: 6003/VA201-SKF

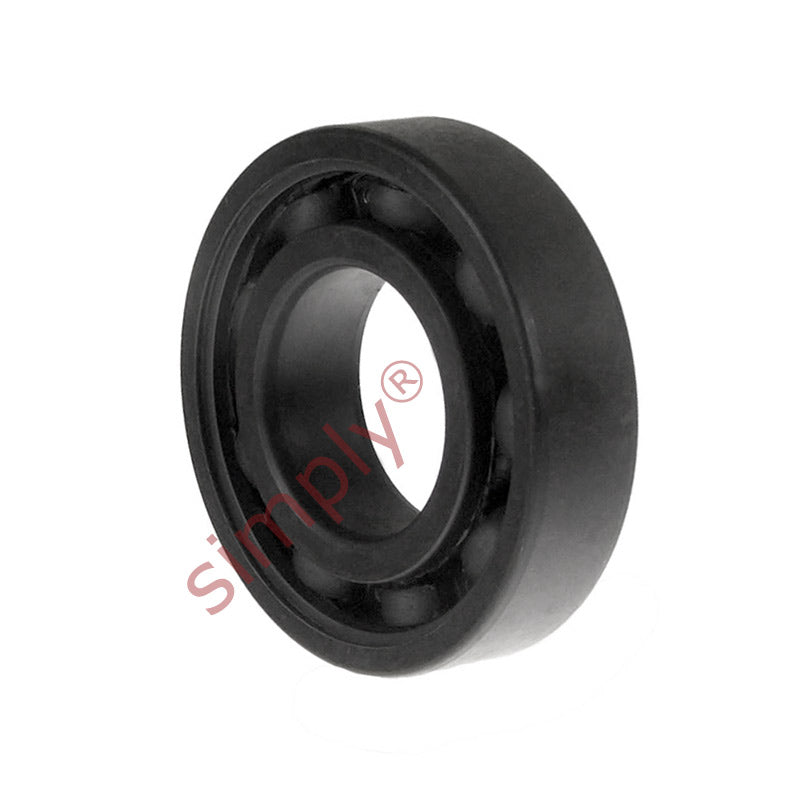

SKF 6003VA201 Single Row Deep Groove Ball Bearing High Temperature Type 17x35x10mm
SKF 6003VA201 Single Row Deep Groove Ball Bearing High Temperature Type 17x35x10mm
Regular price
Rs. 4,662.83
ex VAT
Regular price
Sale price
Rs. 4,662.83
ex VAT
In stock
Price Break
10+
Rs. 4,149.92
19+
Rs. 3,916.78
29+
Rs. 3,870.15
39+
Rs. 3,823.52
49+
Rs. 3,776.89
74+
Rs. 3,730.26
99+
Rs. 3,497.12
199+
Rs. 3,450.49
249+
Rs. 3,403.87
499+
Rs. 3,357.24
999+
Rs. 3,263.98
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| d1 | 22.7mm |
| D2 | 31.2mm |
| r1r2 | 0.3mm |
| Basic load rating Co | 3.25 kN |
| Weight | 0.039 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
