SKU: 6003-2Z-HT-330

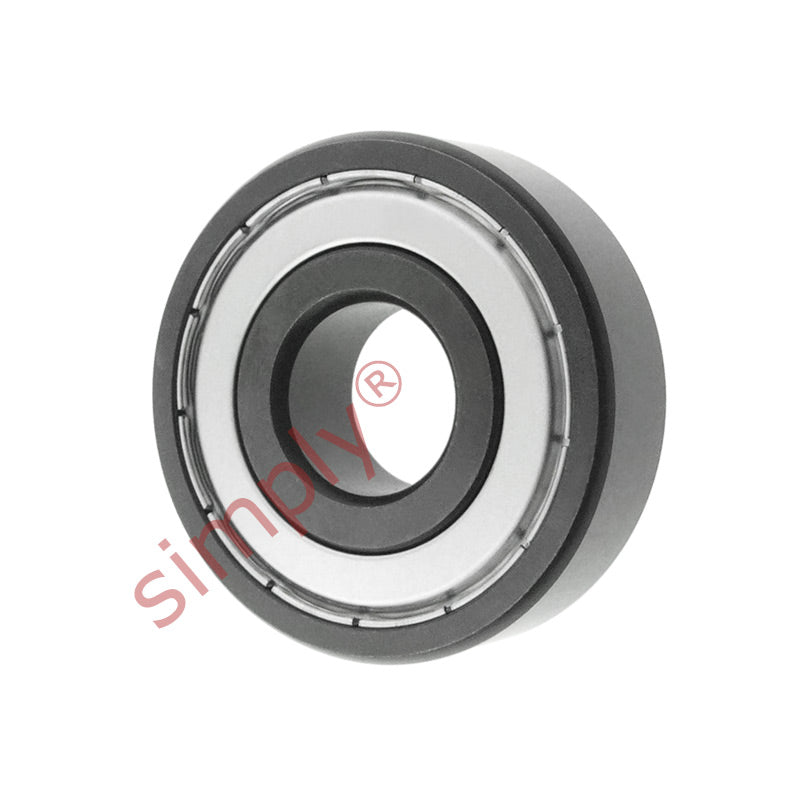

6003ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 17x35x10mm Max 250rpm
6003ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 17x35x10mm Max 250rpm
Regular price
Rs. 1,575.50
ex VAT
Regular price
Sale price
Rs. 1,575.50
ex VAT
Equivalent to: 60032ZVA201 60032ZVA208 60032ZVA228
In stock
Price Break
10+
Rs. 1,402.20
19+
Rs. 1,323.42
29+
Rs. 1,307.67
39+
Rs. 1,291.91
49+
Rs. 1,276.16
74+
Rs. 1,260.40
99+
Rs. 1,181.63
199+
Rs. 1,165.87
249+
Rs. 1,150.12
499+
Rs. 1,134.36
999+
Rs. 1,102.85
Couldn't load pickup availability
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 60032ZVA201 60032ZVA208 60032ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 17mm |
|---|---|
| Outside diameter D | 35mm |
| Width W | 10mm |
| Static load max | 1.88 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 250 rpm |
| Weight | 40 g |
