SKU: 6000-NTN

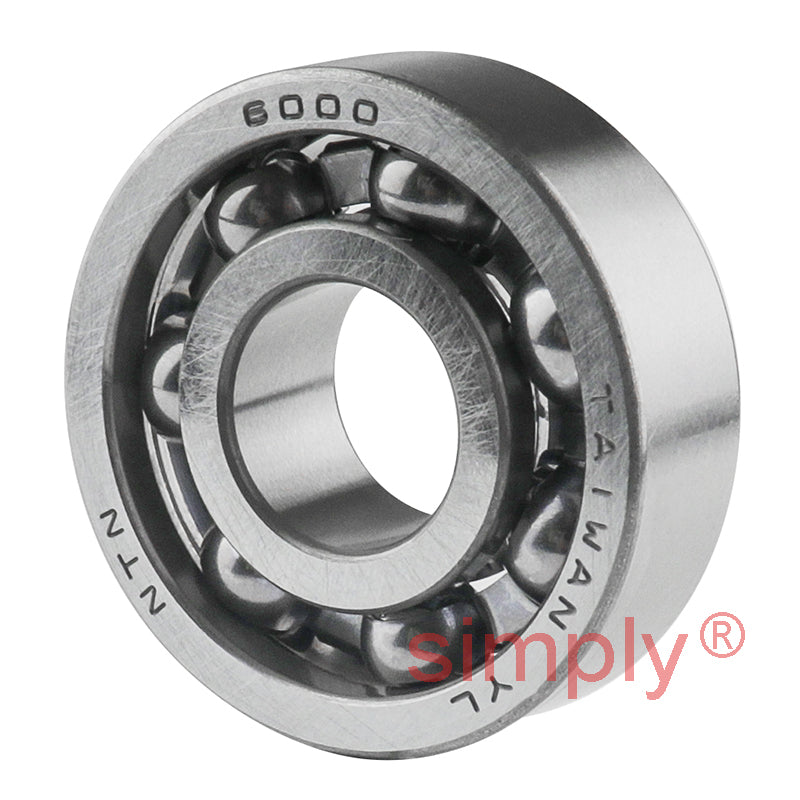

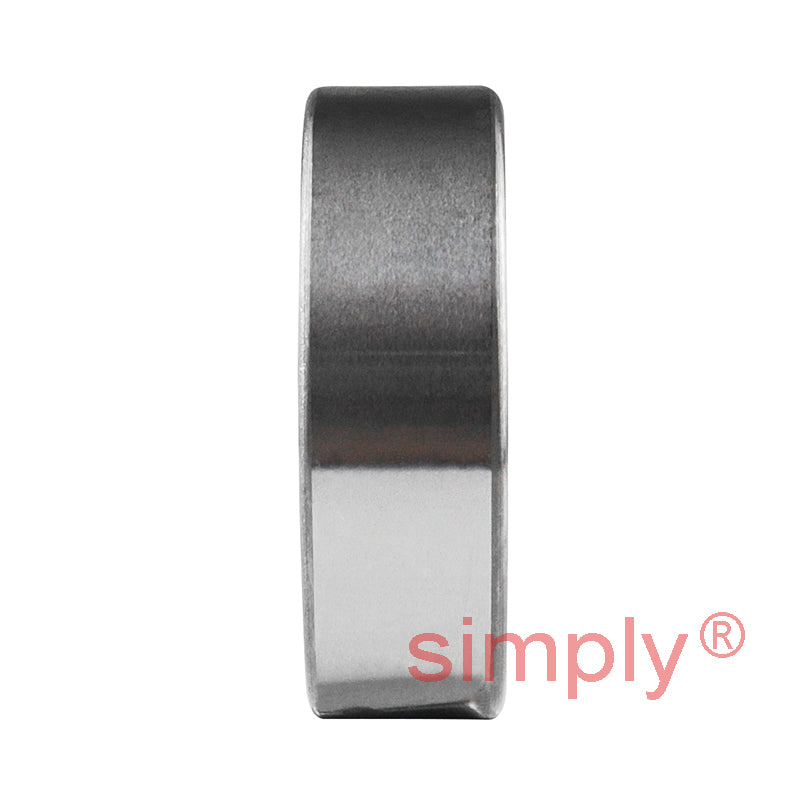

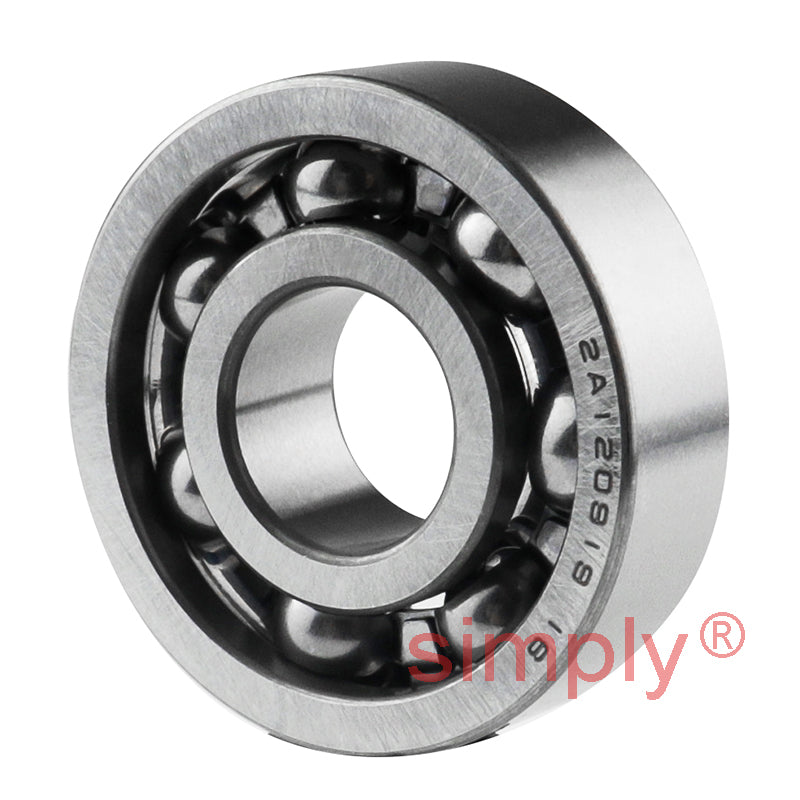

NTN 6000 Open Type Deep Groove Ball Bearing 10x26x8mm
NTN 6000 Open Type Deep Groove Ball Bearing 10x26x8mm
Regular price
Rs. 526.16
Regular price
Sale price
Rs. 526.16
Taxes included.
Equivalent to: 6000CM 9100K 9100 100KS 6100 3L00 EL10 ELL10
In stock
Price Break
10+
Rs. 468.28
19+
Rs. 441.97
29+
Rs. 436.71
39+
Rs. 431.45
49+
Rs. 426.19
74+
Rs. 420.93
99+
Rs. 394.62
199+
Rs. 389.36
249+
Rs. 384.10
499+
Rs. 378.84
999+
Rs. 368.31
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6000CM 9100K 9100 100KS 6100 3L00 EL10 ELL10
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 26mm |
| B | 8mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 5.05 kN |
| C<sub>or</sub> | 1.96 kN |
| C<sub>u</sub> | 0.138 kN |
| f<sub>0</sub> | 12.4 kN |
| Grease | 29000 rpm |
| Oil | 34000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 12mm |
| D<sub>a</sub> Max. | 24mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.019 kg |
