SKU: 60-3-SYN-NO12-RENOLD
Renold Synergy 60-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Renold Synergy 60-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
Rs. 9,065.01
Regular price
Sale price
Rs. 9,065.01
Taxes included.
In stock
Price Break
10+
Rs. 8,067.86
19+
Rs. 7,614.61
29+
Rs. 7,523.96
39+
Rs. 7,433.31
49+
Rs. 7,342.66
74+
Rs. 7,252.01
99+
Rs. 6,798.76
199+
Rs. 6,708.11
249+
Rs. 6,617.46
499+
Rs. 6,526.81
999+
Rs. 6,345.51
Description
Description

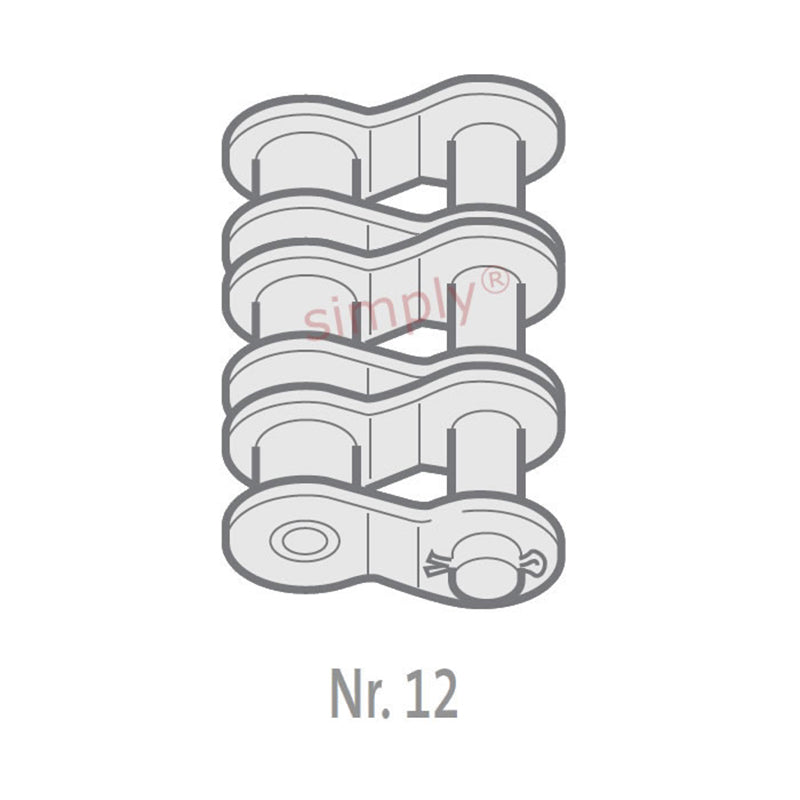

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 70.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 0.01kg/m |
