SKU: 60-3-BB-NO26-RENOLD
Renold Blue Box 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Renold Blue Box 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
Rs. 2,003.91
ex VAT
Regular price
Sale price
Rs. 2,003.91
ex VAT
In stock
Price Break
10+
Rs. 1,783.48
19+
Rs. 1,683.28
29+
Rs. 1,663.25
39+
Rs. 1,643.21
49+
Rs. 1,623.17
74+
Rs. 1,603.13
99+
Rs. 1,502.93
199+
Rs. 1,482.89
249+
Rs. 1,462.85
499+
Rs. 1,442.82
999+
Rs. 1,402.74
Couldn't load pickup availability
Description
Description

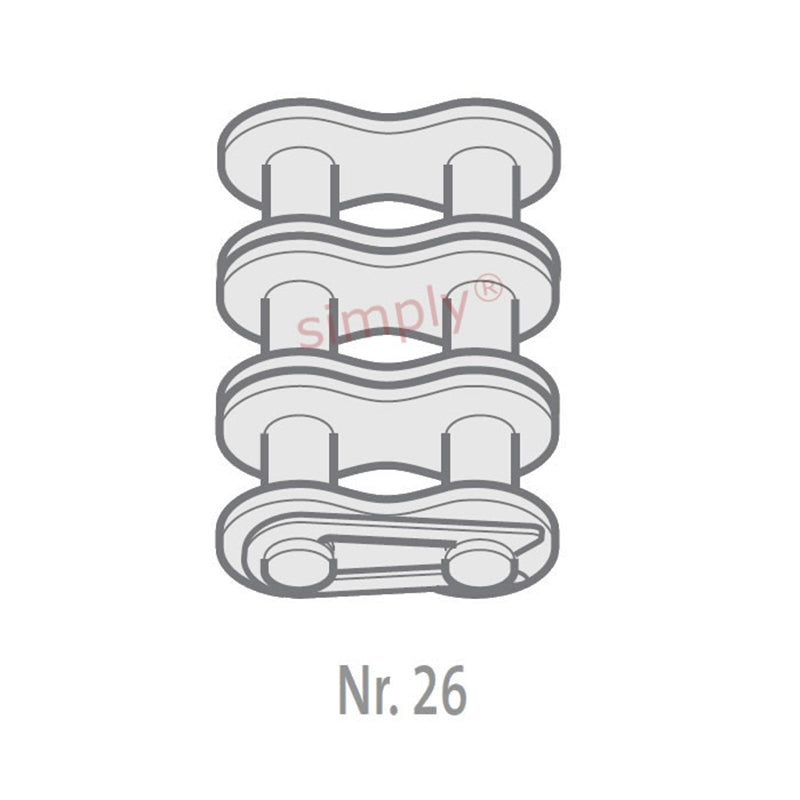

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 70.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 1.51kg/m |
