SKU: 60-2-NO26-MB
Branded 60-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Branded 60-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
Regular price
Rs. 617.05
Regular price
Sale price
Rs. 617.05
Taxes included.
Equivalent to: 60-2-CL
In stock
Price Break
10+
Rs. 549.17
19+
Rs. 518.32
29+
Rs. 512.15
39+
Rs. 505.98
49+
Rs. 499.81
74+
Rs. 493.64
99+
Rs. 462.79
199+
Rs. 456.62
249+
Rs. 450.45
499+
Rs. 444.28
999+
Rs. 431.94
Description
Description

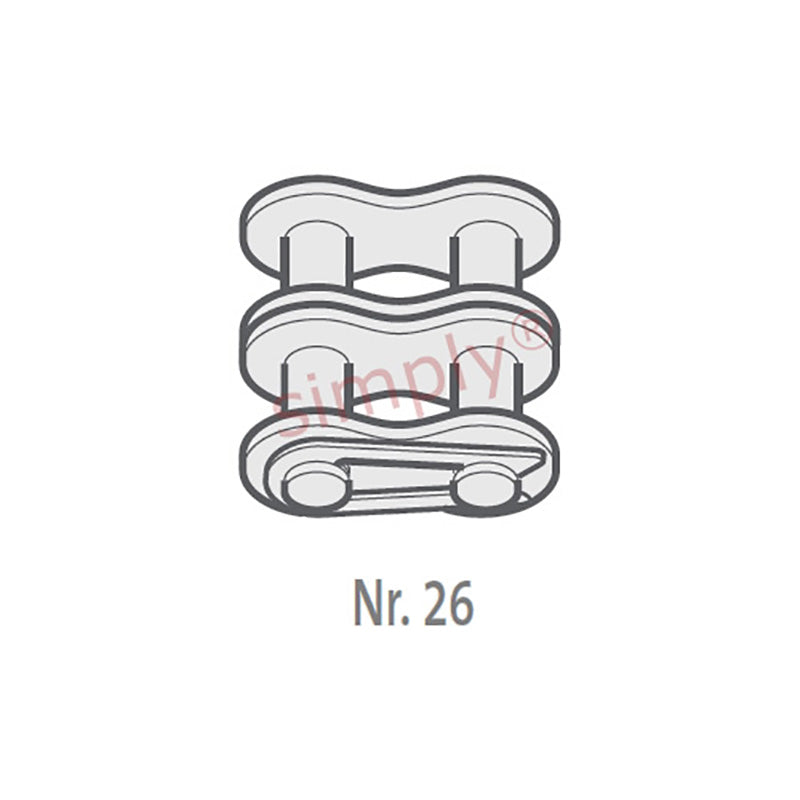

Branded CL / No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 60-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 18mm |
| Plate Width Inner max (E) | 2.4mm |
| Plate Width Outer max (F) | 2.4mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 48.8mm |
| Connecting Link Extension max (J) | 1.5mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 62600 N |
| Weight | 0.01kg/m |
