SKU: 570-704

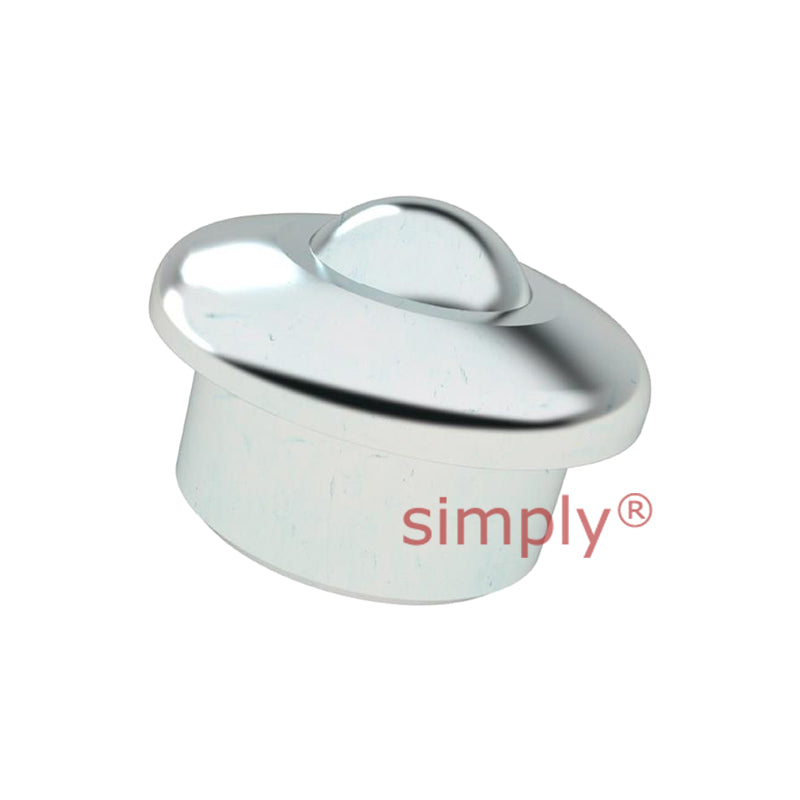

High-Performance Medium Duty Ball Transfer Unit with 44.5mm Steel Ball - Load Capacity 500kg - Allow 2-3 Days
In stock
Price Break
Description
Push Fit Medium-Duty Steel Ball Transfer Unit: Often referred to as "Euro Style Ball Transfer Units" these ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing steel ball running on several smaller support balls contained within a recessed zinc-plated carbon steel housing, allowing the large ball to rotate freely. Push-fit ball transfer units effortlessly slot into pre-defined holes, simplifying the assembly process. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 44.5mm
Technical
| --- | Dimensions |
|---|---|
| Ball Dia | 44.5mm |
| B | 34.5mm |
| D | 62mm |
| F | 75mm |
| Y | 19mm |
| Total Length | 53.5mm |
| --- | Loads and Speeds |
| Load Capacity | 500 kg |
| Weight | 1.03 kg |
| --- | Materials |
| Material | Body: Zinc Plated Case Hardened Steel<br>Ball: Steel 9Cr18Mo |
