SKU: 570-405

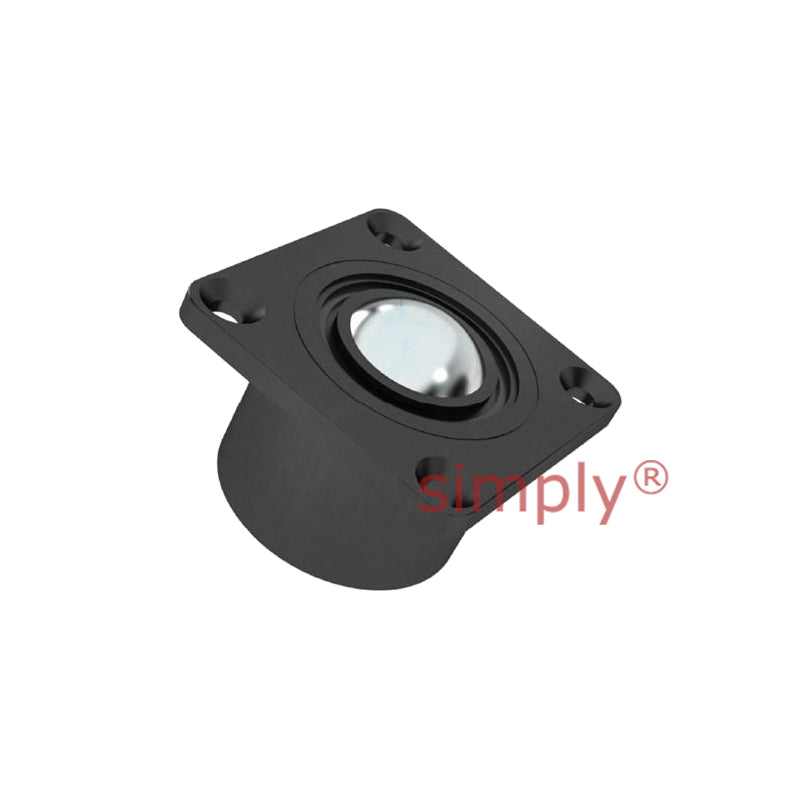

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 2036kg - Allow 2-3 Days
High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 2036kg - Allow 2-3 Days
Regular price
Rs. 48,563.92
Regular price
Sale price
Rs. 48,563.92
Taxes included.
In stock
Price Break
10+
Rs. 43,221.89
19+
Rs. 40,793.69
29+
Rs. 40,308.05
39+
Rs. 39,822.41
49+
Rs. 39,336.78
74+
Rs. 38,851.14
99+
Rs. 36,422.94
199+
Rs. 35,937.30
249+
Rs. 35,451.66
499+
Rs. 34,966.02
999+
Rs. 33,994.74
Description
Description
Surface Fixed Top Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Top mount ball transfer units feature flange-mounted holes that enable users to securely attach them to a flat surface in a top position, ensuring enhanced stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 50.8mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Ball Diameter | 50.8mm |
| Y mm | 98.4mm |
| W mm | 84.2mm |
| D mm | 110mm |
| FXF mm | 127mm |
| CXC mm | 101.6mm |
| T mm | 19.1mm |
| E(Dia) mm | 4x10.3mm |
| --- | Loads and Speeds |
| Load Capacity | 2036 kg |
| Load capacity Ibs | 4488 lbs |
| Weight | 6.32 kg |
| --- | Materials |
| Material | Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo |
| Mounting Type | Square |
