SKU: 570-404

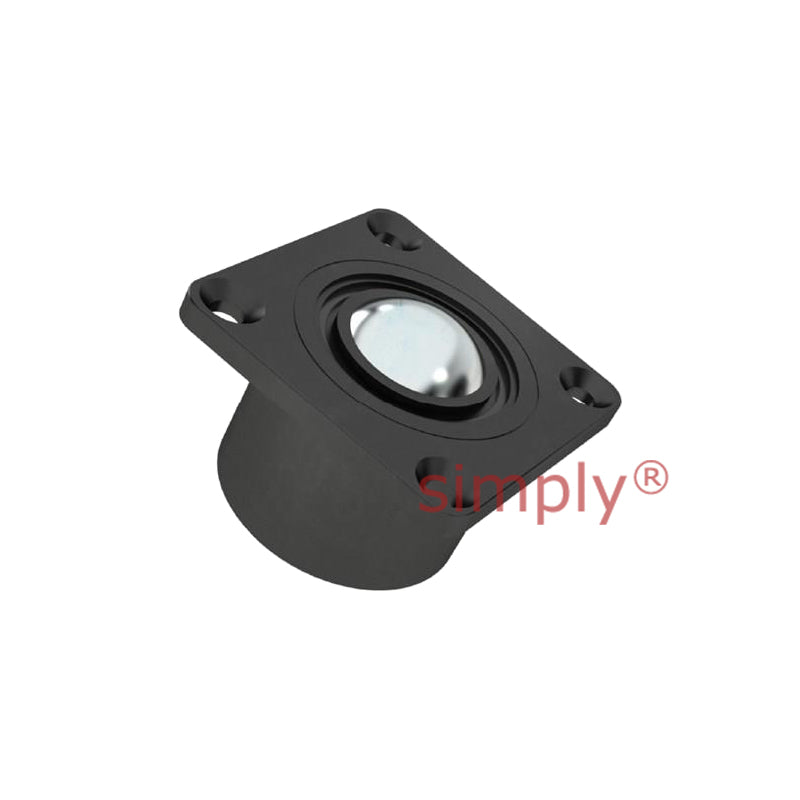

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 1010kg - Allow 2-3 Days
High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 1010kg - Allow 2-3 Days
Regular price
Rs. 16,845.88
ex VAT
Regular price
Sale price
Rs. 16,845.88
ex VAT
In stock
Price Break
10+
Rs. 14,992.83
19+
Rs. 14,150.54
29+
Rs. 13,982.08
39+
Rs. 13,813.62
49+
Rs. 13,645.16
74+
Rs. 13,476.70
99+
Rs. 12,634.41
199+
Rs. 12,465.95
249+
Rs. 12,297.49
499+
Rs. 12,129.03
999+
Rs. 11,792.12
Couldn't load pickup availability
Description
Description
Surface Fixed Top Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Top mount ball transfer units feature flange-mounted holes that enable users to securely attach them to a flat surface in a top position, ensuring enhanced stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 38.1mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Ball Diameter | 38.1mm |
| Y mm | 60.3mm |
| W mm | 47.6mm |
| D mm | 60mm |
| FXF mm | 76.2mm |
| CXC mm | 57.9mm |
| T mm | 12.7mm |
| E(Dia) mm | 4x7.1mm |
| --- | Loads and Speeds |
| Load Capacity | 1010 kg |
| Load capacity Ibs | 2244 lbs |
| Weight | 1.26 kg |
| --- | Materials |
| Material | Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo |
| Mounting Type | Square |
