SKU: 570-403

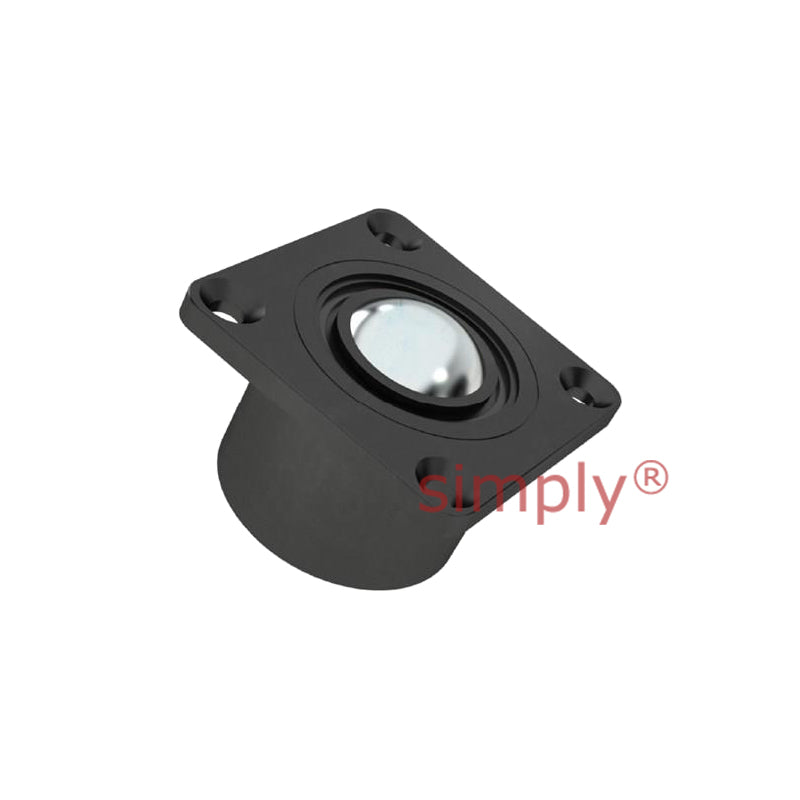

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 327kg - Allow 2-3 Days
High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 327kg - Allow 2-3 Days
Regular price
Rs. 11,105.63
Regular price
Sale price
Rs. 11,105.63
Taxes included.
In stock
Price Break
10+
Rs. 9,884.01
19+
Rs. 9,328.73
29+
Rs. 9,217.67
39+
Rs. 9,106.62
49+
Rs. 8,995.56
74+
Rs. 8,884.50
99+
Rs. 8,329.22
199+
Rs. 8,218.17
249+
Rs. 8,107.11
499+
Rs. 7,996.05
999+
Rs. 7,773.94
Description
Description
Surface Fixed Top Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Top mount ball transfer units feature flange-mounted holes that enable users to securely attach them to a flat surface in a top position, ensuring enhanced stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 25.4mm
Technical
Technical

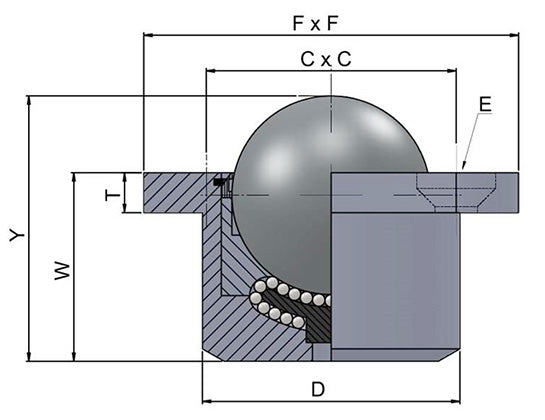

| --- | Dimensions |
|---|---|
| Ball Diameter | 25.4mm |
| Y mm | 44.5mm |
| W mm | 38.2mm |
| D mm | 50.8mm |
| FXF mm | 76.2mm |
| CXC mm | 57.9mm |
| T mm | 6.4mm |
| E(Dia) mm | 4x7.1mm |
| --- | Loads and Speeds |
| Load Capacity | 327 kg |
| Load capacity Ibs | 720 lbs |
| Weight | 0.7 kg |
| --- | Materials |
| Material | Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo |
| Mounting Type | Square |
