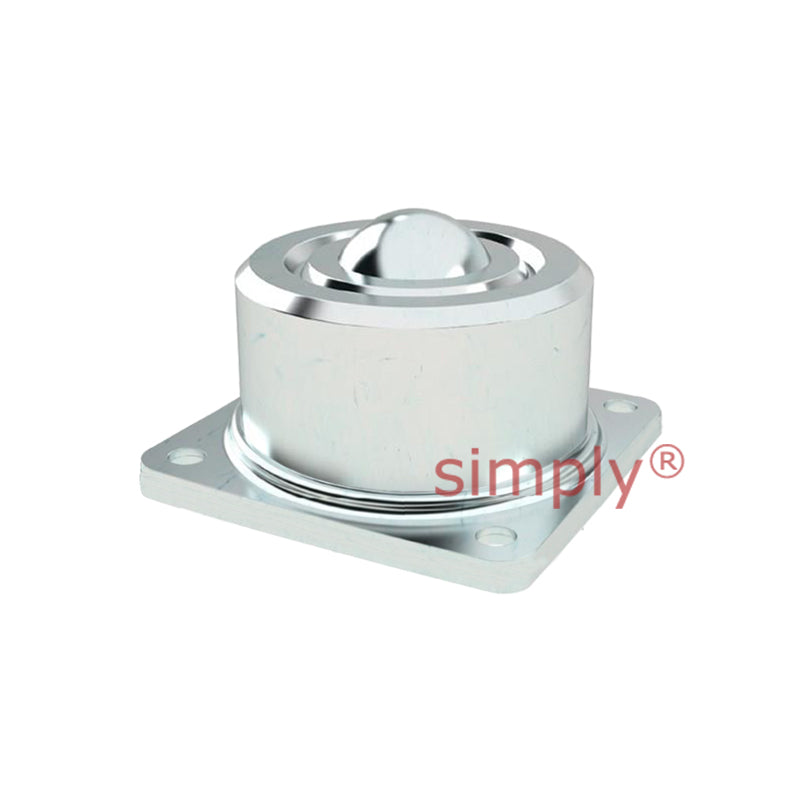

SKU: 570-303
High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 320kg - Allow 2-3 Days
High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 320kg - Allow 2-3 Days
Regular price
Rs. 11,722.68
Regular price
Sale price
Rs. 11,722.68
Taxes included.
In stock
Price Break
10+
Rs. 10,433.19
19+
Rs. 9,847.05
29+
Rs. 9,729.82
39+
Rs. 9,612.60
49+
Rs. 9,495.37
74+
Rs. 9,378.14
99+
Rs. 8,792.01
199+
Rs. 8,674.78
249+
Rs. 8,557.56
499+
Rs. 8,440.33
999+
Rs. 8,205.88
Description
Description
Surface Fixed Base Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Base mount ball transfer units are equipped with flange-mounted holes that enable users to securely anchor the unit onto the base of a flat surface, enhancing stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 25.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Ball Diameter | 25.4mm |
| Y | 44.5mm |
| W | 38.1mm |
| D | 50.8mm |
| FXF | 76.2mm |
| CXC | 57.9mm |
| T | 6.3mm |
| E | 4x7.1mm |
| --- | Loads and Speeds |
| Load Capacity | 320 kg |
| Load capacity | 700 lbs |
| Weight | 0.7 kg |
| --- | Materials |
| Material | Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo |
