SKU: 568-225

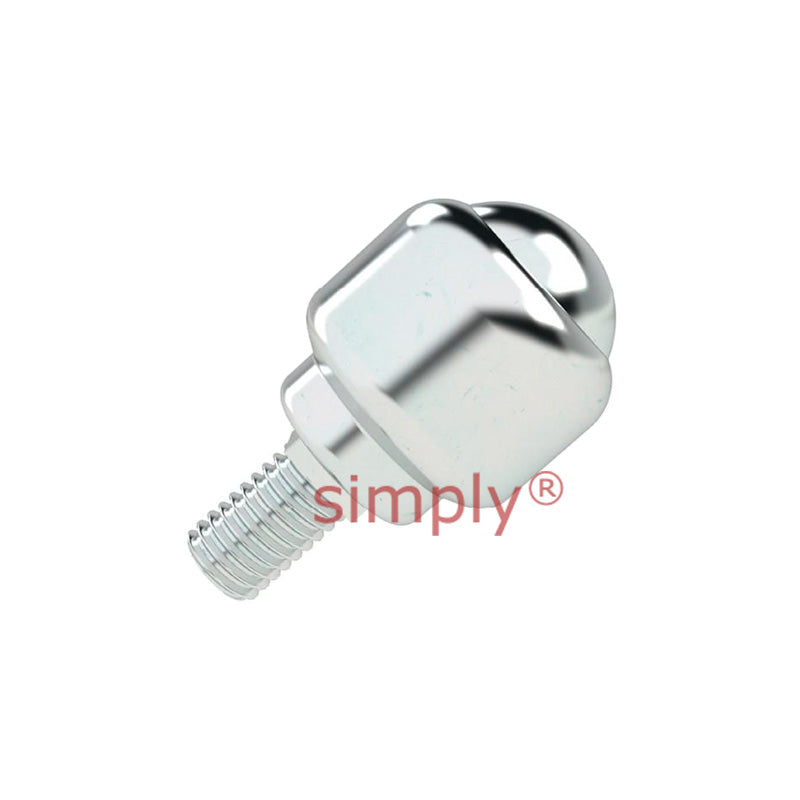

High-Performance Stem Fitting Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 40kg - Allow 2-3 Days
In stock
Price Break
Description
Threaded Ball Transfer Unit: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing steel ball running on several smaller support balls contained within a recessed zinc-plated carbon steel housing, allowing the large ball to rotate freely. Recessed threaded ball transfer Units fit into pre-defined holes and can be fitted upward or downward. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Thread Size:
- M8
- Outside Diameter:
- 25.4mm

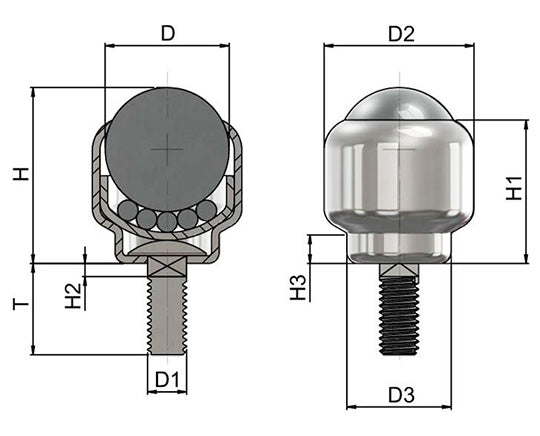

Technical
| --- | Dimensions |
|---|---|
| D | 25.4mm |
| D1 | M8 |
| D2 | 31mm |
| D3 | 24mm |
| H | 32mm |
| H1 | 27mm |
| H2 | 3.3mm |
| H3 | 9.8mm |
| T | 25mm |
| Total Length | 57mm |
| --- | Loads and Speeds |
| Load Capacity | 40 kg |
| Weight | 0.13 kg |
| --- | Materials |
| Material | Body: Zinc Plated Carbon Steel<br>Ball: Steel 9Cr180M1 |
