SKU: 567-632

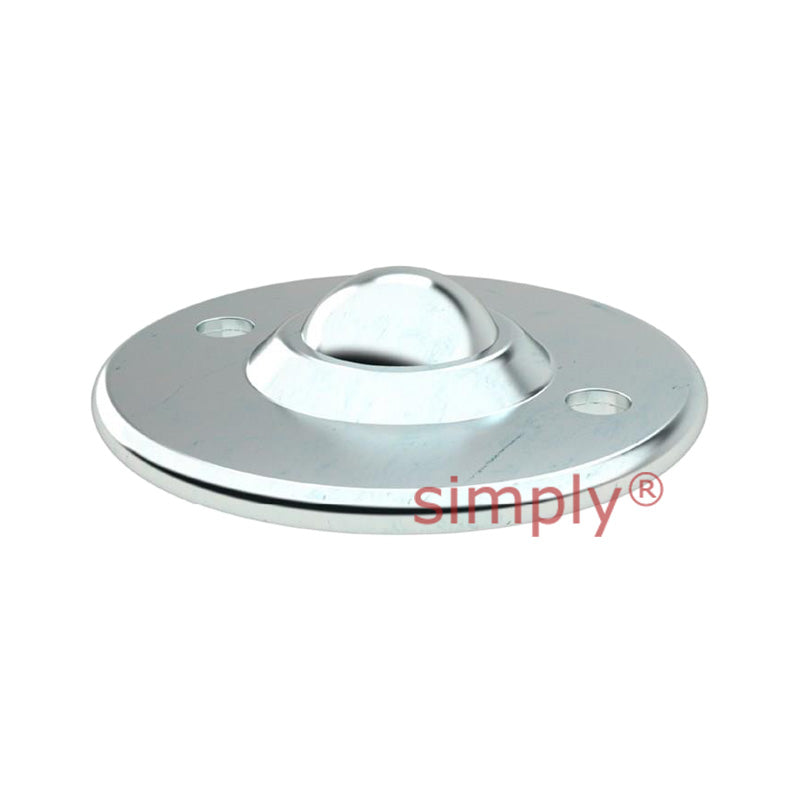

High-Performance 2 Bolt Dish Surface Mount Ball Transfer Unit with 30.1mm Stainless Steel Ball - Allow 2-3 Days
In stock
Price Break
Description
Surface Fixed Dish Type Stainless Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing stainless steel ball running on several smaller support balls contained within a stainless steel "dish" style housing, allowing the large ball to rotate freely. Surface Mount ball transfer units have holes on the flange which allow the user to securely fasten down and secure the ball transfer unit onto a flat surface for greater stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Corrosion-resistant stainless steel. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 30.1mm
Technical
| --- | Dimensions |
|---|---|
| D | 30.1mm |
| H1 | 17mm |
| D1 | 75mm |
| H | 35mm |
| L1 | 60mm |
| H2 | 3.5mm |
| D2 | 44mm |
| D3 | 5.5mm |
| --- | Loads and Speeds |
| Static Load | 40.2 kg |
| Dynamic Load | 46.9 kg |
| Weight | 0.25 kg |
| --- | Materials |
| Material | Body: 304 Stainless Steel<br>Ball: 420 Stainless Steel |
